Ultra-wide bandgap semiconductors are promising for many applications such as power electronics and deep-UV photonics. With a bandgap of ~4.9 eV, Gallium Oxide (Ga2O3) has drawn much attention recently. To improve film quality, a low-temperature buffer layer is commonly used. In this research, wider bandgap β-phase Magnesium Gallium Oxide (MgGaO) alloys were grown in a plasma-assisted molecular beam epitaxy system. The relationship between growth temperature and thickness of low-temperature buffer layer and the quality of active layer was studied by X-ray diffraction (XRD) and by analyzing metal-semiconductor-metal (MSM) photodetector devices based on these films. Low-temperature homo-buffer layers with a growth temperature of 300-500 °C and a thickness of 0-40 nm, respectively, were deposited on c-sapphire substrates, followed by two-hour active layer growth at a temperature of 650 °C. Scanning electron microscope (SEM) and atomic force microscope (AFM) were used to analyze the surface morphology. Energy dispersive X-ray spectroscopy (EDX) was used and the average composition for Ga and Mg is 85 at. % and 15 at. %, respectively. Bandgaps were extracted from the Tauc plot with a value of 5.1 eV for all samples. X-ray diffraction results show all samples are oriented -phase MgGaO. The X-ray rocking curve measurement shows that the full width at half maximum (FWHM) increases as the buffer layer thickness increases, and this may be due to the poor quality of the buffer layer. Current-voltage measurement for the interdigitated electrode photodetectors shows that the current increases as the low-temperature buffer layer increases. Photocurrent decay time increases as the buffer layer thickness increases, indicating that the quality of the active layer improves. Recombination of photo-generated electrons and holes is reduced with fewer defects in the active layer, resulting in a larger current under illumination and a longer photocurrent decay time.

EMC 2023

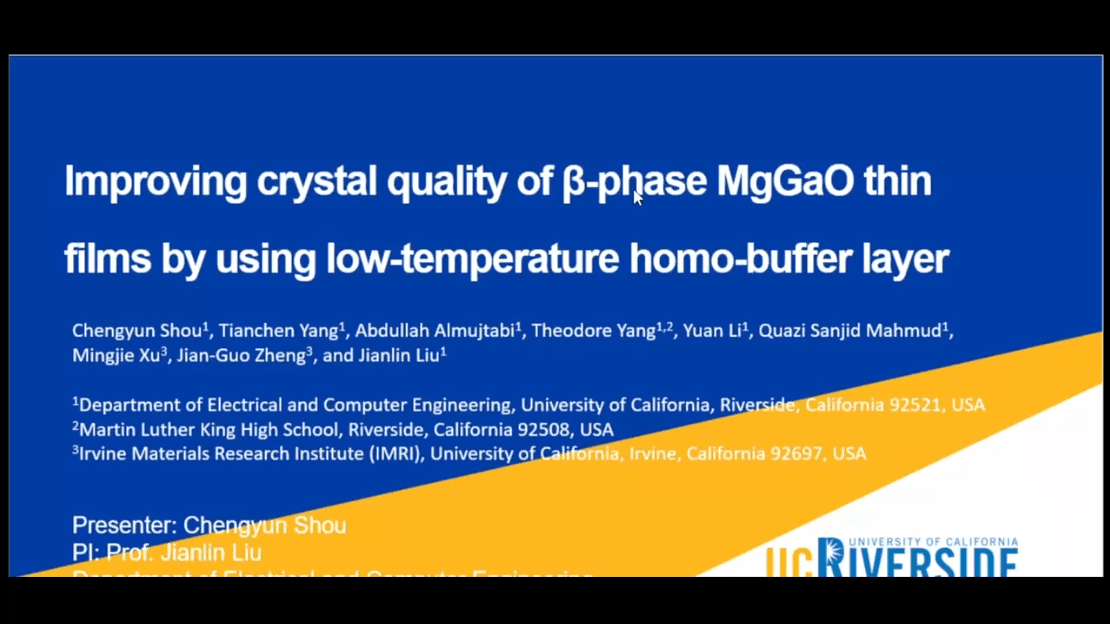

Improving Quality of β–Phase MgGaO Thin Films by Using Low-Temperature Homo-Buffer Layer

low-temperature homo-buffer layer

magnesium gallium oxide

ultra-wide bandgap semiconductor
