Epitaxial lateral overgrowth (ELO) is an established technique for the reduction of the high threading dislocation density of GaN grown on sapphire substrates. ELO is typically carried out via a selective area growth process with stripes of SiO2 as a mask. While the benefits of ELO were instrumental in the development of early GaN optoelectronics, the phenomenon known as “wing tilt” is a longstanding drawback. So-named due to the crystallographic tilt induced in the “wing” regions above the SiO2 mask, the effect is associated with a tilt boundary at the coalescence boundary. While various approaches have been suggested to mitigate the impact of wing tilt, there is not currently a scheme to eliminate the effect. In this study, we demonstrate that wing tilt is a direct result of the use of the SiO2 mask, and that the tilt occurs even before coalescence. We also demonstrate GaN layers free of wing tilt using a mask-free facet-controlled ELO (FACELO) scheme. For this investigation, ammonothermally grown bulk GaN substrates were used. One template was prepared for traditional ELO with SiO2 stripes of 2 μm separated by windows of 2 μm for a period of 4 μm; another template was prepared with a mask-free pattern by etching trenches of 2 μm width and depth, leaving behind 2 μm stripes. Both templates had stripes oriented along the m-direction of GaN. As the first step in the ELO growth scheme, these templates were grown at a low temperature (950 °C) to promote the evolution of semipolar facets, resulting in triangular cross-sections over the stripes. The second growth step to achieve c-plane coalescence was then performed at a higher temperature (1100 °C). The samples were characterized at both steps via SEM and XRD, as well as TEM after coalescence. The (002) ω-rocking curve of the SiO2-grown triangles shows symmetric satellite peaks about the main peak characteristic of wing tilt. Additionally, the FWHM of the peak has increased from 40 arcsec for the substrate to 150 arcsec for the regrown structure. This result shows that even before coalescence, the growth of GaN over SiO2 results in a change in crystalline quality. After coalescence, the FWHM of the peak increases to 180 arcsec, a value suggesting a threading dislocation density in the high 108 cm-2 range. By contrast, the maskless sample shows no satellite peaks in the (002) ω-rocking curve, and at both steps the FWHM of the original template is maintained. The findings of the XRD are confirmed via TEM. In epitaxial layers above the SiO2 patterned sample, a significant density of dislocations can be seen. By contrast, the maskless sample showed no visible dislocations. We therefore conclude that wing tilt and its associated dislocations are caused by the presence of the SiO2 mask, and that by use of a maskless etched template, these deformations and defects can be avoided.

EMC 2023

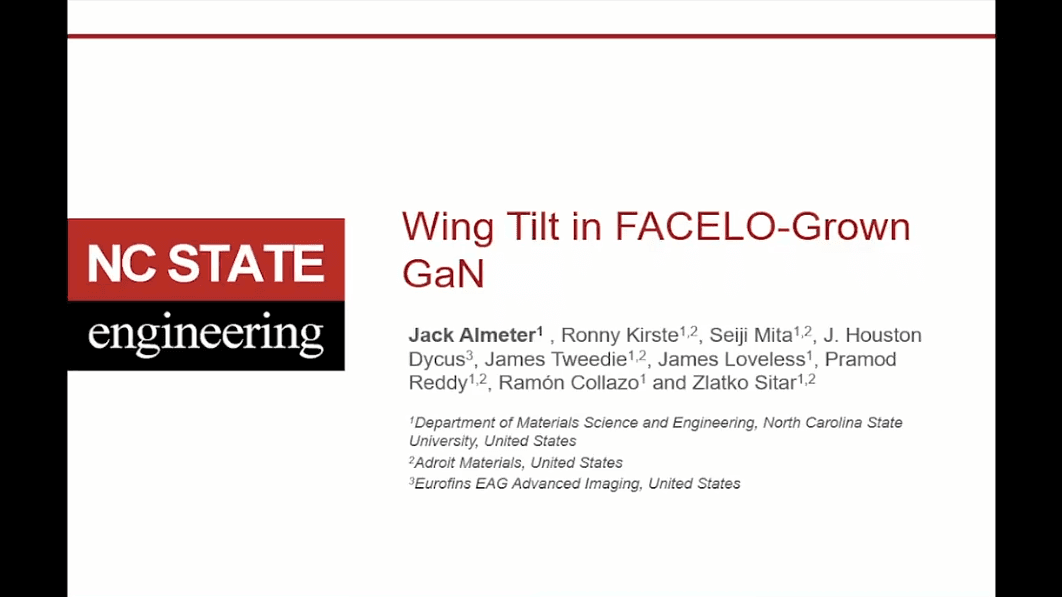

Wing Tilt in ELO-Grown GaN

epitaxial lateral overgrowth

mocvd

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

ScAlN alloys are promising due to their high spontaneous and piezoelectric polarizations and ferroelectric properties for various technologies including high electron mobility transistors (HEMTs), acoustic devices, etc. Despite the common belief that Molecular Beam Epitaxy (MBE) synthesis requires N-rich conditions to avoid metallic phase inclusions, our previous studies1,2 have demonstrated that the metal modulated epitaxy (MME) allows growth of state-of-the-art structural quality ScAlN in metal-rich conditions at a low substrate temperature (Tsub) of 400 °C by using precise control of metal adlayer buildup. Additionally, these previous studies found an extremely unusual feature wherein, a significant catalytic effect of Sc leads to more available nitrogen and thus, ~3x faster growth rates when Sc is present in large coverages on the surface. Accounting for this critical new feature, MME allows improved crystal quality by x-ray diffraction (XRD) figures of merit and surface roughness as low as 250 arcsec and 0.73 nm, respectively. The HEMT structure in the previous studies have shown an improved sheet resistance of 152 W/■, a mobility of 700 cm2/Vs, and a sheet charge of 5.9 x 1013 cm-2 which is near the theoretical limit, exhibiting MME’s great potential for ScAlN HEMT applications. Although the optimization of III/V ratio and growth temperature was done in the previous studies1,2, the structural properties of ScAlN are not well investigated yet especially for the MME grown films which involves low-growth temperature. The present transmission electron microscopy (TEM) study contrasts the unique characteristics of MME grown Sc0.2Al0.8N at low Tsub of 400 °C, and 650 °C without metallic inclusions and 600 °C samples that showed the metallic inclusions. Significant twist is present in the 600 °C grown sample that is absent in the 400 °C sample. MME Sc0.2Al0.8N were grown on MME GaN on hydride vapor phase epitaxy (HVPE) GaN templates on c-plane sapphire substrates as described elsewhere1,2, using plasma-assisted molecular-beam-epitaxy (PA-MBE). TEM and four-dimensional scanning TEM (4D-STEM) are employed to evaluate the structural properties. The cross-sectional sample is prepared by focused ion beam (FIB) under cryogenic temperature. TEM images close to the zone axis, and for the sample with Tsub = 400 °C show better film quality than the two higher temperature samples, having distinctive contrasts of dislocations. The 600 °C sample showed complicated and dense contrasts. This fact correlates with the previous results in XRD 2θ-ω scans indicating that the 600 °C sample had inclusions of Al3Sc phases, which are not present in the other two samples. AFM also showed smoother surface roughness for the 400 °C sample other samples.1,2 Local diffraction patterns (DPs) obtained from 4D-STEM taken for the 600 °C sample shows ScAlN is twisted ~5° along c-axis from underlying GaN, which is confirmed by twisting the sample around the c-axis in the measurement. Some local DPs show additional crystalline tilt by ~6° off the c-axis. These twist and tilt features are supported by the existence Moire fringes in the bulk of the film from TEM images observed in 600 °C sample, but not in 400 °C sample. In addition, multiple DP spots outside the wurtzite DPs are found in some regions, implying the inclusion of multiple phases, e.g., possibly rock-salt or Al3Sc phases, which could be from phase separation as revealed in XRD 2θ-ω scan in the previous studies.1,2 These features in 4D-STEM are not observed in 400 °C sample. The present study helps to understand the mechanisms of better crystal quality in the epitaxially grown ScAlN under low substrate temperatures. 1Z. Engel, et. al., J. Appl. Phys., 132, 185302, 2022. 2 Z. Engel, Doctoral Dissertation, Georgia Institute of Technology, Approved on Dec. 5th, 2022.

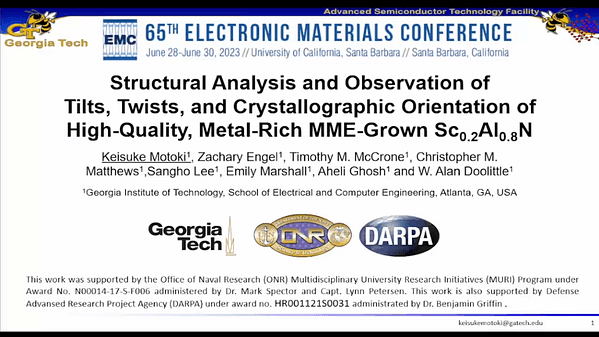

Structural Analysis and Observation of Tilts, Twists and Crystallographic Orientation of High-Quality, Metal Rich Grown Sc0.2Al0.8N
