Long Read-After-Write-Delay (RAWD) is one of the Show stoppers (S.S) in ferroelectric based VNAND (Fe-VNAND) because of limited read speed. We investigated the RAWD time (tRAWD) in MFIS as well as Laminate-MFIS  (LaMFIS). In LaMFIS, Vt tends to increase slightly at low voltage during Incremental Step Positive Pulse (ISPP) operation. This is caused by the accumulation of trapped electrons at the inserted layer. The novel ISPP scheme removed these electrons and therefore improved device performance.

IRPS 2024 Main Conference

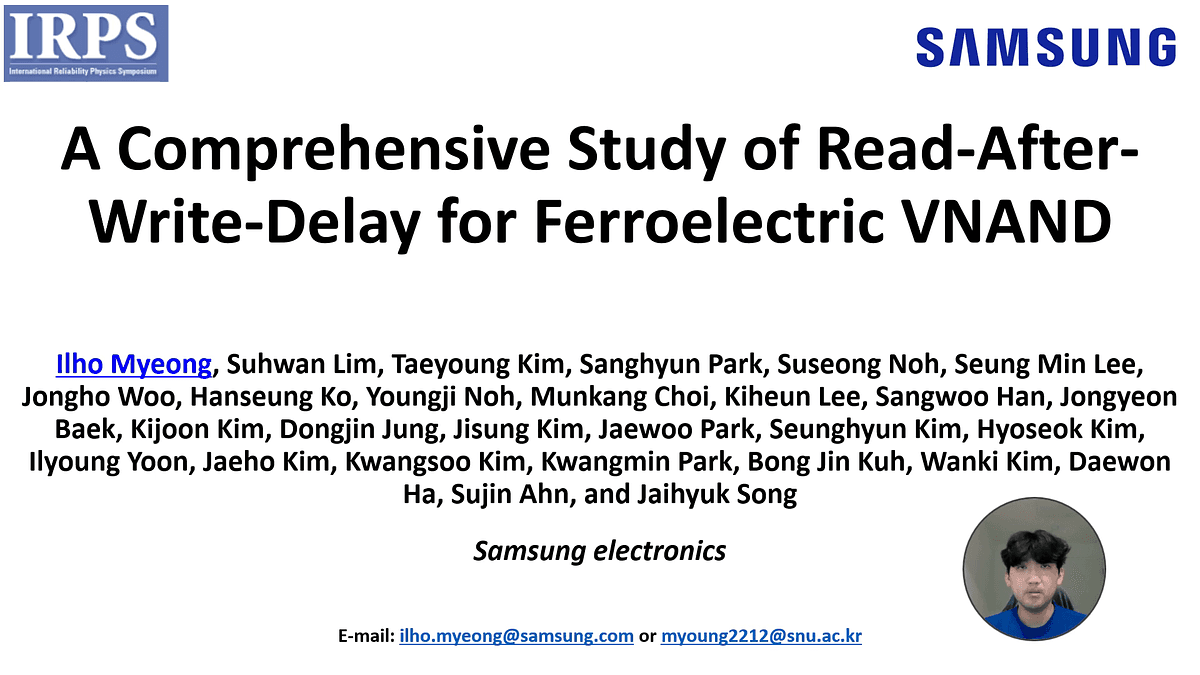

A Comprehensive Study of Read-After-Write-Delay for Ferroelectric VNAND

rawd

fefet

ferroelectrics

reliability
