Lattice structures in additive manufacturing of 316L stainless steel has gained increasing attention due to their well suited mechanical properties and lightweight characteristics. Infill structures such as honeycomb, lattice, and gyroid have shown promise in achieving desirable mechanical properties for various applications. However, the design process of these structures is complex and time-consuming. In this study, we propose a machine learning-based approach to optimize the design of honeycomb, lattice, and gyroid infill structures in 316L stainless steel fabricated using Laser Powder Bed Fusion (L-PBF) technology under different loading conditions.&lt;br&gt;
A dataset of simulated lattice structures with varying geometries, wall thickness, distance and angle using a computational model that simulates the mechanical behavior of infill structures under different loading conditions was generated. The dataset was then used to train a machine learning model to predict the mechanical properties of infill structures based on their design parameters.&lt;br&gt;
Using the trained machine learning model, we then performed a design exploration to identify the optimal infill structure geometry for a given set of mechanical requirements and loading conditions.&lt;br&gt;
Finally, we fabricated the optimized infill structures using L-PBF technology and conducted a series of mechanical tests to validate their performance under different loading conditions.&lt;br&gt;
Overall, our study demonstrates the potential of machine learning-based approaches for the efficient and effective design of honeycomb, lattice, and gyroid infill structures in 316L stainless steel fabricated using L-PBF technology under different loading conditions. Furthermore, this approach can be used for dynamic loading studies of infill structures.

ICALEO 2023

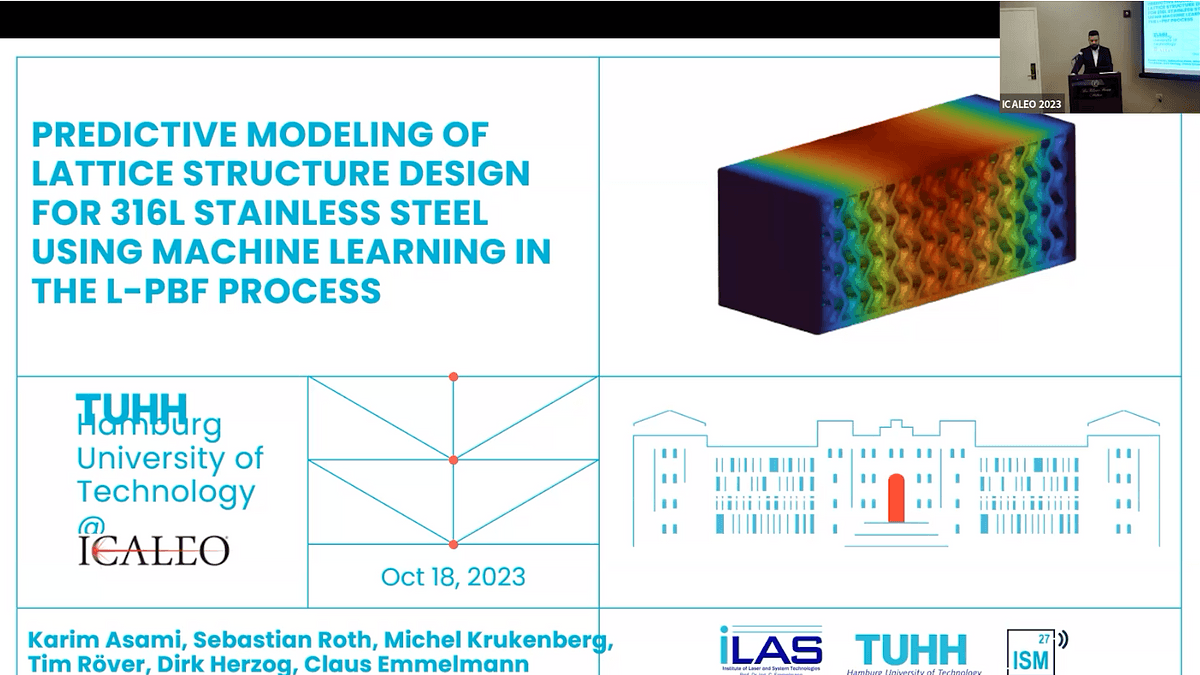

Predictive Modeling of Lattice Structure Design for 316L Stainless Steel Using Machine Learning in the L-PBF Process

lattice structures

design for additive manufacturing

316l

finite element analysis

machine learning

#### Welcome to the 67th Annual Conference on Magnetism and Magnetic Materials, MMM 2022!

The Conference was held from October 31 to November 4 and offers both in-person and on-demand content.

MMM 2022 is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a tutorial, and several special sessions. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

<iframe width="560" height="315" src="https://s3.amazonaws.com/pf-user-files-01/u-59356/uploads/2022-11-02/un13zp7/MMM%20Welcome%20Video%20v5.mp4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

For tickets to the event, please register at the following link: https://magnetism.org/registration

Please register for the MMM 2022 conference to join the event.

MMM 2022

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

Lattice structures in additive manufacturing of 316L stainless steel has gained increasing attention due to their well suited mechanical properties and lightweight characteristics. Infill structures such as honeycomb, lattice, and gyroid have shown promise in achieving desirable mechanical properties for various applications. However, the design process of these structures is complex and time-consuming. In this study, we propose a machine learning-based approach to optimize the design of honeycomb, lattice, and gyroid infill structures in 316L stainless steel fabricated using Laser Powder Bed Fusion (L-PBF) technology under different loading conditions.
A dataset of simulated lattice structures with varying geometries, wall thickness, distance and angle using a computational model that simulates the mechanical behavior of infill structures under different loading conditions was generated. The dataset was then used to train a machine learning model to predict the mechanical properties of infill structures based on their design parameters.
Using the trained machine learning model, we then performed a design exploration to identify the optimal infill structure geometry for a given set of mechanical requirements and loading conditions.
Finally, we fabricated the optimized infill structures using L-PBF technology and conducted a series of mechanical tests to validate their performance under different loading conditions.
Overall, our study demonstrates the potential of machine learning-based approaches for the efficient and effective design of honeycomb, lattice, and gyroid infill structures in 316L stainless steel fabricated using L-PBF technology under different loading conditions. Furthermore, this approach can be used for dynamic loading studies of infill structures.

technical paper

**General Chair Welcome**

![](https://assets.underline.io/markdown_image/1/image/d6e6dddc08bf2371b9136ea9c18dc5ab.png)

Welcome to ICALEO® 2023!

We were excited to host the world’s leading international conference on Lasers and Electro-Optics in Chicago. The Laser has been shown to have the potential to revolutionize solutions for major global challenges like energy usage and supply, global warming, and CO2 footprint. Even the fusion energy breakthrough is based on laser technology. The conference, with peer-reviewed scientific and technical presentations, focused on the newest results in Micro Applications, Macro Applications, Additive Manufacturing, Beam Shaping and Frontiers in Laser Applications. Additionally, the Battery-Manufacturing Track gave an overview of the process combined with the newest advances in laser application results.

The Business Session brought the business aspect and environment of the laser to the audience and the possibility to discuss with seasoned industry leaders from around the world.

Whether this is the first time you are hearing about ICALEO or you are a longtime attendee, you will find something of interest, new ideas, and an excellent opportunity to network with other laser specialists worldwide.

**Klaus Löffler **
ICALEO General Chair
Managing Director, Precitec GmbH

**What is ICALEO?**

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Participants will be immersed in a dynamic environment that fosters collaborative learning, networking, and idea exchange. Through engaging plenary presentations, technical sessions, an industry business panel, and networking events, attendees gain insights into the forefront of laser technology. From industrial applications to medical breakthroughs, additive manufacturing to materials processing, ICALEO covers the entire spectrum of laser-related disciplines. Moreover, the event serves as a launching pad for synergistic partnerships, paving the way for professionals to forge connections that shape the future of our industry.

Join us in Chicago and be part of an unparalleled gathering that challenges the boundaries of possibility within lasers and electro-optics. As we convene to share knowledge, explore innovations, and cultivate collaborations, ICALEO stands as a pivotal force driving the evolution of this transformative technology.

**Who attended?**

ICALEO is tailor-made for professionals, researchers, academics, and enthusiasts who are deeply passionate about the world of lasers and electro-optics. If you're an industry trailblazer, an academic luminary, an aspiring expert, or a postgraduate student looking to dive into the latest developments and trends, this is an event you won't want to miss.

Industrial leaders seeking to stay ahead of the curve in their fields, engineers working on laser applications, and manufacturing experts interested in additive manufacturing and materials processing will find ICALEO to be an invaluable platform. Researchers and scientists exploring the forefront of laser technology, from fundamental principles to groundbreaking applications, will also discover a wealth of knowledge and networking opportunities.

Medical professionals investigating laser-based medical advancements, entrepreneurs seeking to innovate with lasers, educators aiming to stay updated with the latest in laser education, and policy makers shaping the industry's landscape are all essential attendees. Whether you're an established expert or a rising star, the 42nd annual ICALEO promises to offer a diverse ecosystem of expertise, connections, and knowledge sharing that caters to the laser and electro-optics communities.

**Fields Represented:**

* Entrepreneurs and Innovators
* Manufacturing Experts
* Students and Graduates
* Policy Makers and Regulators
* Consultants and Advisors
* Technology Enthusiasts
* Suppliers and Manufacturers
* Startups and Innovators
* Researchers in Laser Education

**[View All Proceedings Here](https://icaleo.conferencespot.org/event-data)**

### **Program Tracks & Chairs**

To access the site please register [**here**](https://icaleo.org/attend).

Please register for the ICALEO 2023 Conference to join the event.

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Powder bed fusion of metals using laser beam (PBF‑LB/M) is a commonly used additive manufacturing process for the production of high-performance metal parts. AlSi10Mg is a widely used material in PBF-LB/M due to its excellent mechanical and thermal properties. However, the part quality of AlSi10Mg parts produced using PBF-LB/M can vary significantly depending on the process parameters. This study investigates the use of machine learning (ML) algorithms for the prediction of the resulting part density of AlSi10Mg parts produced using PBF-LB/M. An empirical dataset of PBF-LB/M process parameters and resulting part densities is used to train a ML models. Furthermore, a methodology is developed to allow density predictions based on simulated meltpool dimensions for different process parameters. This approach uses finite element simulations to calculate the meltpool dimensions, which are then used as input parameters for the ML models. The accuracy of this methodology is evaluated by comparing the predicted densities with experimental measurements. The results show that ML models can accurately predict the part density of AlSi10Mg parts produced using PBF-LB/M. Moreover, the methodology based on simulated meltpool dimensions can provide accurate predictions while significantly reducing the experimental effort needed in process development in PBF-LB/M. This study provides insights into the development of data-driven approaches for the optimization of PBF-LB/M process parameters and the prediction of part properties.

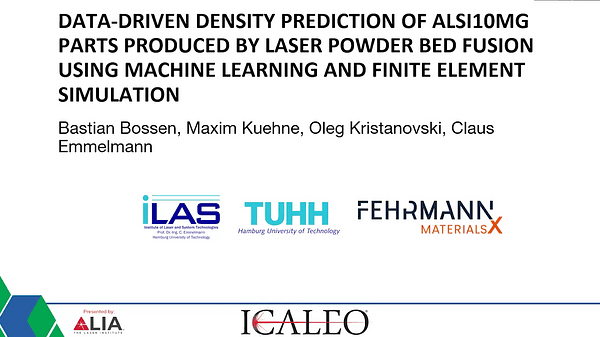

Data-Driven Density Prediction of AlSi10Mg Parts Produced by Laser Powder Bed Fusion Using Machine Learning and Finite Element Simulation
