In this work, we report on the use of Triethyl Gallium for ‘in-situ Ga etching’ of β-Ga2O3 inside an MOCVD reactor. We demonstrate a maximum etch rate of ~8.5 μm/hr at a substrate temperature of 1000 °C and Ga flux of 140.47 μmol/min. In addition, low surface roughness of 2.9 nm was also obtained at a Ga flux of 6.05 μmol/min and substrate temperature of 800 °C. The ultra-wide band gap semiconductor β-Ga2O3 (band gap=4.7 eV, breakdown field=8 MV/cm) has made rapid strides in terms of substrates, material quality and device performance over the last decade. Ga2O3 devices with performance exceeding that of SiC has already been demonstrated [ref]. Several promising device structures in β-Ga2O3 require the use of 3-D structures like fins and trenches. For fabrication of such structures in β-Ga2O3, dry etching using BCl3/Ar has been widely used as the standard process. However, a key challenge when using dry etching is the induced subsurface damage. This has been shown to be significant in Ga2O3 resulting in charge depletion, reduction in channel mobility and increased sidewall roughness. In addition to dry etching, wet etching using HF, H3PO4 and KOH has also been reported. However, wet etching is found to mostly result in angled sidewalls which are not ideal. A promising etch technique for Ga2O3 is the use of suboxide formation upon exposure to Ga (Ga (s)+ Ga2O3 (s) Ga2O (g)) at sufficiently high temperatures. Suboxide based etching of β-Ga2O3 performed in an MBE chamber was previously shown to result in low damage etching of Ga2O3 along with vertical sidewalls for fins and trenches [1]. In this work, we studied ‘in-situ Ga etching’ performed inside an MOCVD reactor using Triethyl Gallium (TEGa) precursor. At sufficiently high substrate temperature, TEGa undergoes cracking resulting in the deposition of Ga on the substrate surface while the remaining hydro-carbon group (CxHy) get pumped out of the chamber. The deposited Ga reacts with Ga2O3 forming volatile suboxide, resulting in etching. We studied the effects of various parameters like TEGa flow rate, substrate temperature (Tsub) and substrate orientation ((001) and (010)) on etch characteristics like etch rate and surface roughness. Substrate temperatures ranged from 650 °C to 1000 °C to determine the effect on etch rate and surface roughness. Pressure was held constant at 15 Torr throughout the experiments. Samples with a constant etch depth of ~300 nm was used to measure surface roughness using AFM. Gallium flux spanned from 3.63 μmol/min to 140.47 μmol/min to determine its effect on the previously stated etch characteristics. The etch rate was found to increase with substrate temperature from 1.8 m/hr at Tsub=700 to 3.7 m/hr at Tsub=1000 . The surface roughness of etched surfaces also decreased with increase in Tsub for both (010) and (001) Ga2O3 surfaces. As expected, etch rate was found to monotonically increase with TEGa flow rates both at Tsub=800 and Tsub=1000 . At a substrate temperature of 1000 and TEGa molar flow of 140.5 μmol/min, etch rates exceeding 8.5 m/hr was achieved. However, RMS roughness ((010) β-Ga2O3 surface) was also found to increase at high TEGa flow rates. Lowest surface roughness was obtained at low TEGa flow rates (&lt;12 μmol/min) and Tsub=800 with the lowest obtained RMS roughness of ~2.8 nm. Patterned etching using SiO2 hard mask was also demonstrated with a total etch depth of 2 m. In conclusion, we demonstrate MOCVD-based ‘in-situ Ga etching’ using TEGa as the Ga source. Etch rates as high as 8.5 μm/hr was obtained at a substrate temperature of 1000 and TEGa flow rate of 140.47 μmol/min. In addition, low surface roughness &lt;3 nm and patterned etching using SiO2 as the hard mask is also demonstrated. This work was supported by faculty startup fund from Arizona State University. References: [1] Kalarickal, N. K., Applied Physics Letters, 119(12), 123503.

EMC 2023

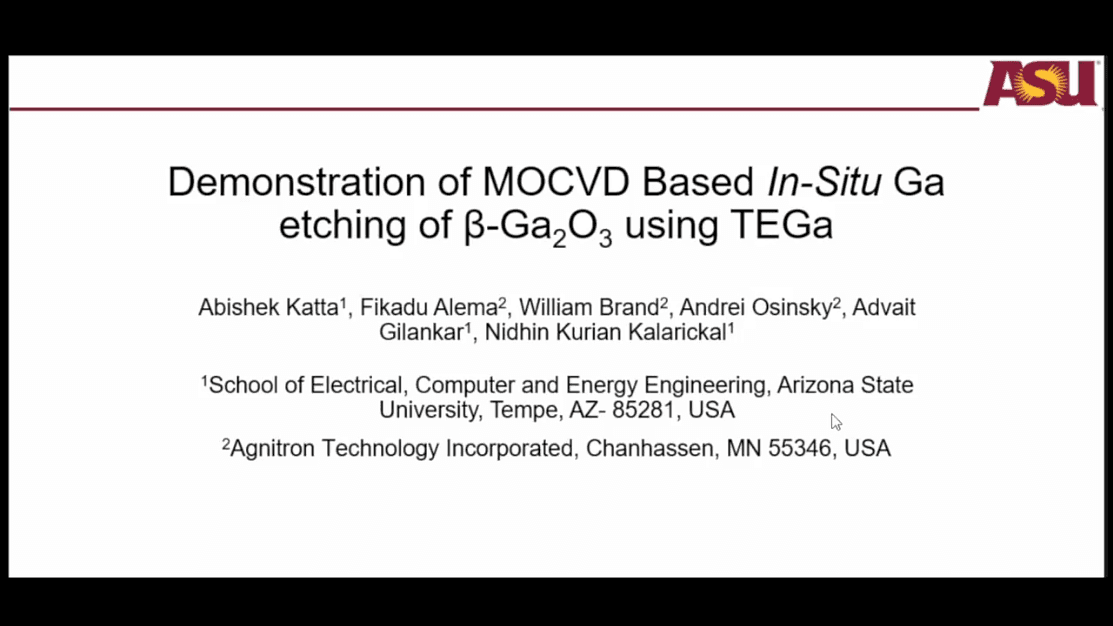

Demonstration of MOCVD Based &#39;in situ Ga Etching’ of β-Ga2O3 Using TEGa

in-situ etching

mocvd

gallium oxide

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

In this work, we report on the use of Triethyl Gallium for ‘in-situ Ga etching’ of β-Ga2O3 inside an MOCVD reactor. We demonstrate a maximum etch rate of ~8.5 μm/hr at a substrate temperature of 1000 °C and Ga flux of 140.47 μmol/min. In addition, low surface roughness of 2.9 nm was also obtained at a Ga flux of 6.05 μmol/min and substrate temperature of 800 °C. The ultra-wide band gap semiconductor β-Ga2O3 (band gap=4.7 eV, breakdown field=8 MV/cm) has made rapid strides in terms of substrates, material quality and device performance over the last decade. Ga2O3 devices with performance exceeding that of SiC has already been demonstrated [ref]. Several promising device structures in β-Ga2O3 require the use of 3-D structures like fins and trenches. For fabrication of such structures in β-Ga2O3, dry etching using BCl3/Ar has been widely used as the standard process. However, a key challenge when using dry etching is the induced subsurface damage. This has been shown to be significant in Ga2O3 resulting in charge depletion, reduction in channel mobility and increased sidewall roughness. In addition to dry etching, wet etching using HF, H3PO4 and KOH has also been reported. However, wet etching is found to mostly result in angled sidewalls which are not ideal. A promising etch technique for Ga2O3 is the use of suboxide formation upon exposure to Ga (Ga (s)+ Ga2O3 (s) Ga2O (g)) at sufficiently high temperatures. Suboxide based etching of β-Ga2O3 performed in an MBE chamber was previously shown to result in low damage etching of Ga2O3 along with vertical sidewalls for fins and trenches [1]. In this work, we studied ‘in-situ Ga etching’ performed inside an MOCVD reactor using Triethyl Gallium (TEGa) precursor. At sufficiently high substrate temperature, TEGa undergoes cracking resulting in the deposition of Ga on the substrate surface while the remaining hydro-carbon group (CxHy) get pumped out of the chamber. The deposited Ga reacts with Ga2O3 forming volatile suboxide, resulting in etching. We studied the effects of various parameters like TEGa flow rate, substrate temperature (Tsub) and substrate orientation ((001) and (010)) on etch characteristics like etch rate and surface roughness. Substrate temperatures ranged from 650 °C to 1000 °C to determine the effect on etch rate and surface roughness. Pressure was held constant at 15 Torr throughout the experiments. Samples with a constant etch depth of ~300 nm was used to measure surface roughness using AFM. Gallium flux spanned from 3.63 μmol/min to 140.47 μmol/min to determine its effect on the previously stated etch characteristics. The etch rate was found to increase with substrate temperature from 1.8 m/hr at Tsub=700 to 3.7 m/hr at Tsub=1000 . The surface roughness of etched surfaces also decreased with increase in Tsub for both (010) and (001) Ga2O3 surfaces. As expected, etch rate was found to monotonically increase with TEGa flow rates both at Tsub=800 and Tsub=1000 . At a substrate temperature of 1000 and TEGa molar flow of 140.5 μmol/min, etch rates exceeding 8.5 m/hr was achieved. However, RMS roughness ((010) β-Ga2O3 surface) was also found to increase at high TEGa flow rates. Lowest surface roughness was obtained at low TEGa flow rates (<12 μmol/min) and Tsub=800 with the lowest obtained RMS roughness of ~2.8 nm. Patterned etching using SiO2 hard mask was also demonstrated with a total etch depth of 2 m. In conclusion, we demonstrate MOCVD-based ‘in-situ Ga etching’ using TEGa as the Ga source. Etch rates as high as 8.5 μm/hr was obtained at a substrate temperature of 1000 and TEGa flow rate of 140.47 μmol/min. In addition, low surface roughness <3 nm and patterned etching using SiO2 as the hard mask is also demonstrated. This work was supported by faculty startup fund from Arizona State University. References: [1] Kalarickal, N. K., Applied Physics Letters, 119(12), 123503.

Demonstration of MOCVD Based 'in situ Ga Etching’ of β-Ga2O3 Using TEGa

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

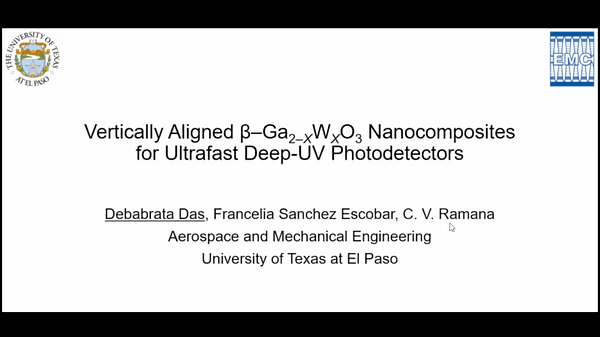

There is an ever-increasing demand for energy-efficient multifunctional sensors or transducers based on low-cost and environmentally acceptable material systems. This demand is a direct result of the remarkable improvement of current technology, which has led to an increase in energy consumption. In this context, we describe a self-assembled vertically aligned β–Ga2–XWXO3 nanocomposite (GWO-VAN) architecture-assisted ultrafast deep-ultraviolet (DUV) photodetection on a silicon platform. Silicon has traditionally served as the core of traditional electronics. By carefully controlling the growth settings, it was possible to demonstrate the growth of W-enriched vertical β–Ga2–XWXO3 nanocolumns contained within a W-deficient β–Ga2–XWXO3 matrix on a silicon substrate. The presence of a nanocomposite of β–Ga2–XWXO3 with a high structural and chemical quality has been confirmed by detailed structural and morphological investigations. In addition, absorption and photoluminescence spectroscopy are able to describe photo-absorption dynamics as well as the recombination process through the use of various donor-acceptor energy levels. The GWO-VAN architecture makes it possible to have equally scattered nanoregions with asymmetric donor energy state distribution, which ultimately results in the formation of build-in potential at those vertical β–Ga2–XWXO3 interfaces. Under UV irradiation, the heterostructure displays the characteristics of a photovoltaic cell. A responsivity of ~30 A/W is seen alongside an ultrafast response time of ~350 microseconds under transient triggering. The corresponding detectivity and efficiency values are 7.9×1012 Jones and 1.4×104 %, respectively. The implications of the aforementioned approach are enormous in terms of designing electronic devices for extreme environment applications and have immense potential to demonstrate a significant improvement in low-cost UV photodetector technology.
