The paper presents a new positioning method based on a Generalised Spatial Correlation of GNSS signals for vehicles moving on geo-referenced tracks. Such location approach allows to detect the closest position ranges to predetermined locations by predicting the phase of satellites’ signals at and in proximity to the referenced locations, by testing the match between the predicted signals and those received by the non standard GNSS receiver.

The gain in sensitivity obtained by cumulating the multi-satellite spatial correlation, associated with the knowledge of the track path, makes it possible to reinforce the reliability of the detection of passage at the referenced spots (concept of virtual balise) and to improve the accuracy of dating and position, reducing the protection radius associated with the single instant of passage of the mobile compared to classical RAIM like monitoring methods.

In addition to the SNR gain brought by cumulating satellite intercorrelation functions, the method of spatial correlation also makes it possible to benefit from a better robustness with respect to specular multipaths. In presence of multipaths delayed with respect to the direct signal, and although the time correlation function is distorted and not symmetrical, the position of the maximum correlation remains unchanged.

The Generalized Spatial Correlation can be used in static and dynamic applications for estimating in real time the &quot;best&quot; position likelihood, based on the sole estimation of the correlation maximum according to 3D space. It is more robust than a classical PVT estimation, based on individual time based correlation using dedicated discriminators sensitive to the distortion of the correlation function.

The duration of exposure of the function being limited to the duration of passage of the mobile near the virtual balise, the risks of non-integrity of the GNSS signal due to local environment are also reduced.

Navigation 2021

Generalised Spatial Correlation for a véhicule moving on a constrained trajectory


IWSSIP is an international conference that brings together researchers and developers from both academia and industry reporting the latest scientific and theoretical advances to discuss and debate major issues and state-of-the-art aspects on systems, signals and image processing.

###### For the session discussion, each author will be seated at individual breakout tables.  Please find which table they will be at here:
###### [QA table assignments in Gather.town](https://drive.google.com/file/d/1hBHOD_KF7NSsaTcpYcHCZslXJvQVxJQe/view?usp=sharing)

IWSSIP 2021

The paper presents a new positioning method based on a Generalised Spatial Correlation of GNSS signals for vehicles moving on geo-referenced tracks. Such location approach allows to detect the closest position ranges to predetermined locations by predicting the phase of satellites’ signals at and in proximity to the referenced locations, by testing the match between the predicted signals and those received by the non standard GNSS receiver.

The gain in sensitivity obtained by cumulating the multi-satellite spatial correlation, associated with the knowledge of the track path, makes it possible to reinforce the reliability of the detection of passage at the referenced spots (concept of virtual balise) and to improve the accuracy of dating and position, reducing the protection radius associated with the single instant of passage of the mobile compared to classical RAIM like monitoring methods.

In addition to the SNR gain brought by cumulating satellite intercorrelation functions, the method of spatial correlation also makes it possible to benefit from a better robustness with respect to specular multipaths. In presence of multipaths delayed with respect to the direct signal, and although the time correlation function is distorted and not symmetrical, the position of the maximum correlation remains unchanged.

The Generalized Spatial Correlation can be used in static and dynamic applications for estimating in real time the "best" position likelihood, based on the sole estimation of the correlation maximum according to 3D space. It is more robust than a classical PVT estimation, based on individual time based correlation using dedicated discriminators sensitive to the distortion of the correlation function.

The duration of exposure of the function being limited to the duration of passage of the mobile near the virtual balise, the risks of non-integrity of the GNSS signal due to local environment are also reduced.

technical paper

### Welcome to Navigation 2021!

Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

Navigation and timing are critical to the world we all inhabit. We believe that the work of the wider navigation community enables societal benefit including support to national grand challenges and also the United Nations’ Sustainable Development Goals. To achieve this requires collaboration and understanding across science, technology and practice.

Navigation 2021 is about much more than technology innovation, it also showcases science and research from across the wider community, including animal navigation, cognition and human factors.


Our aim was to bring diverse disciplines together to stimulate insights and knowledge sharing towards a more navigable world. We hope we achieved this!

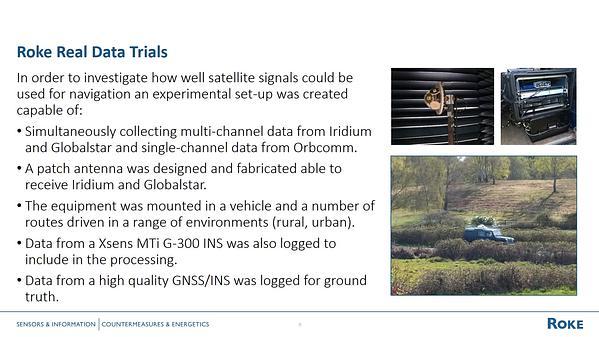

Alternate means of navigation are needed for when GNSS signals are unavailable. Satellite signals of opportunity have the advantages of global, 24/7 cover and are independent of any local outages that may disrupt terrestrial transmissions. This paper examines the use of Iridium, Globalstar and Orbcomm satellite signals for navigation on a moving platform. These signals are intended for use with small user terminals and so can be exploited with a relatively simple antenna array and receiver. The use of direction of arrival as well as Doppler and time of arrival measurements is examined. Data gathering trials are conducted using a vehicle platform. Measurements from all three constellations are combined with IMU data in an extended Kalman filter and the performance assessed compared with GNSS ground truth. It is found that the navigation accuracy achievable is predominantly dependent on the accuracy of the knowledge of the satellite positions and velocities. Using the SGP4 TLE information available from space-track.org, median radial errors around 400m are achieved when driving through a variety of land environments.
