A gallium oxide (β-Ga2O3) Schottky barrier diode (SBD) is proposed and characterized. The fabricated diode has an area of 300 μm × 300 μm with a 12 μm unintentionally doped (UID) (1.7 × 1016 cm−3) Ga2O3 epitaxial layer on Sn doped (5.4 × 1018 cm−3) (010) Ga2O3 substrate. The device has 1.02 kV breakdown
voltage and 500 mA forward current at 5.5 V. The reverse recovery characteristic and the rectification capability of the diode are experimentally studied. The Ga2O3 SBD shows a high potential for power device applications such as pulse power applications.

IEEE WiPDA 2021

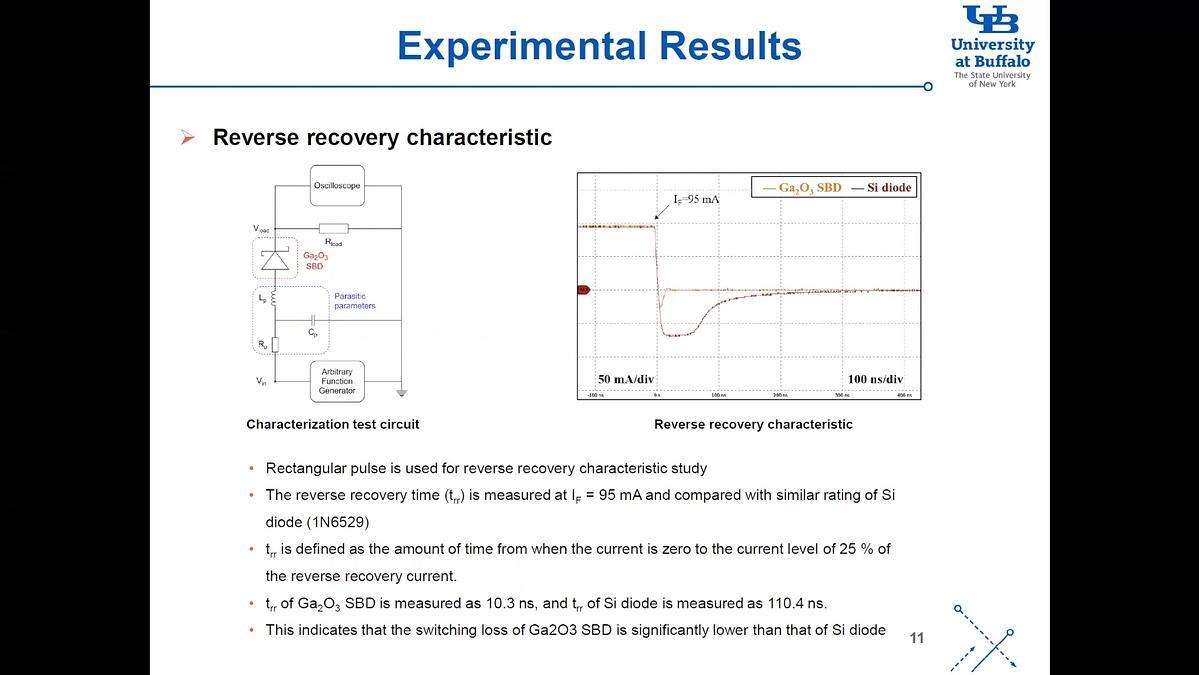

Reverse Recovery and Rectification Characteristic of β-Ga2O3 Schottky Barrier Diode

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

EMC 2023

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

technical paper

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

This presentation discusses the impacts of the defect densities on SiC epitaxial wafers on the yield and oxide reliability of large area SiC power MOSFETs. TDDB measurements on commercial SiC power MOSFETs with different sizes are conducted to check if oxide reliability degrades with larger device size. The gate oxide reliability of planar and trench SiC power MOSFETs are also studied and compared.

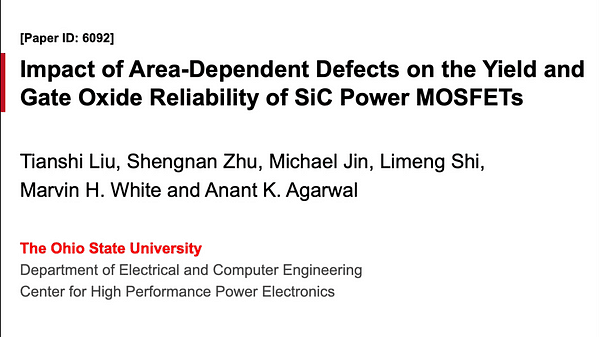

Impacts of Area-Dependent Defects on the Yield and Gate Oxide Reliability of SiC Power MOSFETs
