Top-down image analysis of hexagonal hole arrays created in silicon using block-copolymer nanolithography was used to evaluate differences in dry etch rate between n-type, p-type, and intrinsic silicon.  By analyzing the hole areas and extracting the average radius and porosity, sub-nm differences in chemical etch rate could be extracted.

EIPBN 2021

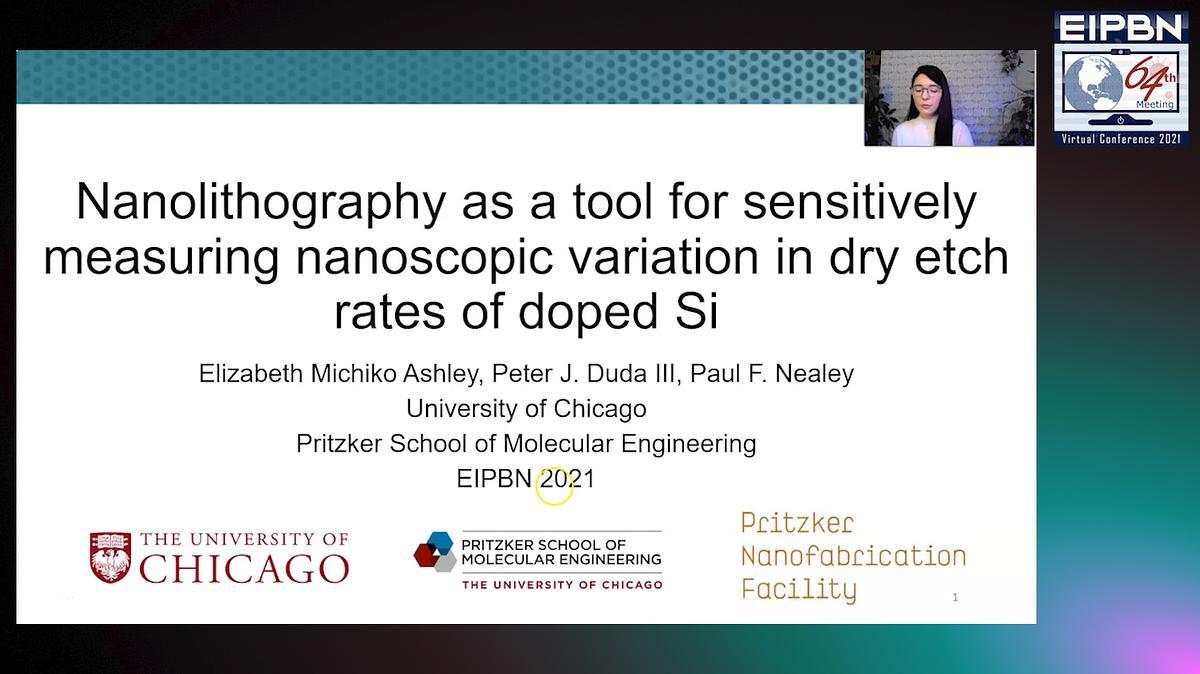

Using block-copolymer nanolithography as a tool to sensitively evaluate variation in chemical dry etching rates of semiconductor materials with sub-5 nm resolution

self-assembly

dry etching

doping

block-copolymers

nanolithography

image analysis
