Canada

The connection between quantum entanglement and classical chaos has puzzled physicists for decades. To understand chaos in the quantum context, it is necessary to explore signatures of chaos in the deep quantum regime, where the quantum-classical correspondence cannot be invoked. A common approach is to study the quantum kicked top, which is a finite-dimensional quantum system that displays chaotic dynamics in the classical limit. Few experimental realizations of the quantum kicked top have been achieved for small number of time steps and low chaoticity parameters. However, the problem of accurate experimental realization of long-term dynamics and large range of chaoticity parameter in the quantum kicked top is still unsolved. In this work we propose and demonstrate an exact simulation of the 2-qubit quantum kicked top on a universal quantum computer. Our proposal allows for arbitrary time steps and chaoticity parameter without compromising experimental fidelity. Using the IBM 5-qubit quantum chip we physically demonstrate the theoretical connection between delocalization and entanglement. We obtain a phase space plot of time-averaged entanglement in the deep quantum regime, which surprisingly reflects the classical phase space structure. Since chaos is known to generate entanglement in the quantum kicked top, our proposed method could be useful in Quantum Information Processing.

CAP Virtual Congress 2021

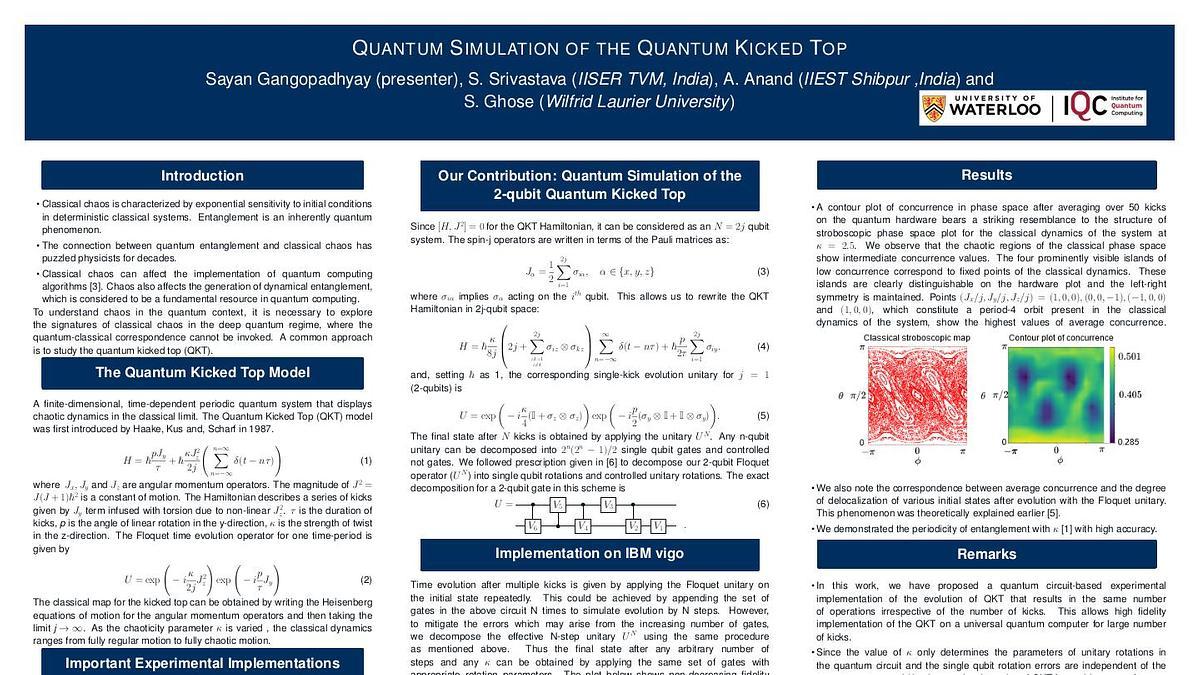

Quantum Simulation of the Quantum Kicked Top

quantum kicked top

entanglement

quantum simulation

**BQIT is a three day annual workshop** aimed at enabling leading UK and international academics and industrial partners to come together; to explore and discuss future ambitions and challenges in the field of **Quantum Information Technologies.** Since our conception in 2014 we have had 230 speakers and panellists who have presented their work and opinions on a range of topics, from quantum theory to innovation in industry.


### Welcome Message
The BQIT:21 team welcomes you to the eighth Bristol Quantum Information Technologies workshop!

Last year was the first time in our workshop's history that we had gone fully virtual. The global circumstances that continue to impact us all professionally and personally have forced BQIT once again to be delivered as an all-virtual workshop for 2021. The access this creates to colleagues across the world who would otherwise be unable to join us, as well as being able to make the workshop free for all attendees due to the lower costs involved in delivering an online workshop, are just a couple of the extraordinary benefits of meeting online. This also means that we can welcome three times as many attendees to BQIT than previous years.

We take this opportunity to thank each of our speakers and poster presenters for contributing their technical content, this year's sponsors, whose support this year enabled BQIT:21 to be free to all attendees, and to all of our attendees for joining us online this year. We recognise the extra energy required to stay connected and motivated during these difficult times, and are hugely encouraged to see so many of you willing to continue to connect with us on an online platform.

It is our hope that you have a productive and enjoyable time while you engage and interact with BQIT:21, and to everyone that has helped take BQIT:21 online, thank you!

**The BQIT board and organisation team **


![](https://assets.underline.io/uploads/markdown_image/1/image/a12e0c1ad3410144cb48557690e4ecaf.png)
### This year's workshop agenda is available here: [Virtual BQIT:21](https://drive.google.com/file/d/1QwsSM0ztnxC_lgUKf3TbO3GvnI44AQkY/view?usp=sharing)
For further information, please contact us at: **bqit-admin@bristol.ac.uk**

![](https://assets.underline.io/uploads/markdown_image/1/image/a12e0c1ad3410144cb48557690e4ecaf.png)

Bristol Quantum Information Technologies Workshop

poster

**WELCOME TO THE 2021 CAP VIRTUAL CONGRESS UNDERLINE PLATFORM**

The CAP staff and our organizing and program committees are pleased to welcome you to our 2021 Congress filled with plenary talks, technical sessions/talks, student presentations and competition sessions, workshops, and several symposia offered by the CAP divisions and its partners.

You will also have opportunities to network with other delegates through the Gathertown platform accessed by selecting the lounge or posters button on the left.

Registered delegates should use the schedule button to call up the details of the session/event they wish to attend.  Each sessions includes a link to access the online platform where the event is taking place, either within Underline or through other Congress-related Zoom meetings.

Invited speaker talks are identified with an (I), and student competitors include a (G*) or (U*) to identify graduate or undergraduate presenters.

Please take the time to check out the information about our sponsors and exhibitors, request further information, or leave a note of thanks for their support.

General information about the Congress can be found on the CAP website Congress pages at https://www.cap.ca/congress/2021.

Looking for a specific talk?   A full searchable list is available on our Indico Congress site at https://indico.cern.ch/event/985448/contributions/

We look forward to sharing this exciting week with you!


Autopsy studies indicate that the distribution of axons throughout the brain could differ in brains with and without schizophrenia. MRI has inferred axon diameters and distribution in the brain, typically for axons larger than 5 μm in diameter. The goal of this work is to modify these methods to adapt oscillating gradients (OG) to target small axons (1 to 2 μm range) which constitute the majority of cortical connections and shorten the data acquisition time so that the method can be used to measure axon diameters in *vivo*.
Methods to determine micron-sized axon radii using oscillating gradients were too time-consuming for in *vivo* mouse imaging. The methods use many gradient frequencies, and a geometric model called AxCaliber which uses intracellular and extracellular compartments. Through simulations, we found that fewer gradient frequencies for data provided a good fit to the intracellular model, and in some cases, fewer frequencies led to a better fit to the model than more frequencies. A moderate correlation was found between the predicted axonal radius from the model and the actual axonal radius used in the simulations. In conclusion, reducing the number of gradient frequencies and gradient strengths appears to be possible, in theory, to reduce the imaging time by a factor of 4.16 without a significant change in the precision of the inferred axon radii. The method proposed here requires *a priori* knowledge of the desired cell sizes to be inferred. Imaging data, as well as electron microscopy data, need to be collected after reopening the lab after the pandemic to verify the theoretical predictions. This work is the first step to reducing the imaging time so that OG can be used with the AxCaliber model to infer 1-2 μm axon sizes.
The authors wish to acknowledge funding from Mitacs and NSERC.

Moving toward faster measurements of micron-sized axon diameters in vivo

A prototype medical device has been developed and built at Western University to image adolescents with hemophilic arthropathy. The device consists of a plastic cylindrical tub able to rotate freely about a base plate. A 10 MHz linear array ultrasound transducer by Canon Medical Systems is mounted to the inside of the tub pointed toward its center. The tub is filled with water to act as a medium between the ultrasound transducer and the skin. The leg or arm is fixed, while a clinical ultrasound probe rotates over 360 degrees. 2D US images are recorded every 0.5 degrees, and reconstructed into a 3D volume in an inverse fan geometry. The 3D image provides a viewpoint that is unreachable in conventional 2D ultrasonography. The prototype design, study protocol workflow, and preliminary results will be presented; specifically showing corresponding anatomical landmarks between 3D ultrasound and MR images. The future work for the study is a clinical trial at SickKids Hospital in Toronto; whereby, ultrasound / MRI data from each subject will be viewed by two experienced musculoskeletal radiologists who are blinded to the other aspects of the study. Interpretations from both modalities will gauge the feasibility of this approach for use in imaging of hemophilic arthropathy in target joints.

Multi-Modality Comparison of Wrist and Ankle joints: A Feasibility Study

Laser-induced breakdown spectroscopy (LIBS) is a laser-based spectrochemical technique that allows a near-instantaneous measurement of the elemental composition of a target by making time-resolved spectroscopic analyses of laser-induced ablation plasmas. Utilizing nanosecond laser pulses and a broadband high-resolution Echelle spectrometer, high signal-to-noise optical emission spectra can be obtained from almost any desired target.

When the ablation target contains bacterial cells, the inorganic elements present in the bacterial cells (phosphorous, magnesium, calcium, and sodium) can be used to discriminate the bacteria on the basis of their atomic emission spectrum alone. Currently, we deposit bacterial cells onto a nitrocellulose filtration medium by centrifuging very low titer liquid specimens through a custom-fabricated centrifuge tube insert device. Prior to centrifugation, the bacteria cells are obtained by swabbing abiotic surfaces upon which a known number of bacteria cells have been deposited. The cells are then shaken off the disposable pathology swabs into a water suspension in a vortex mixing instrument.

Spectra from five different bacterial pathogens and pathogen surrogates (Staphylococcus epidermidis, Escherichia coli, Mycobacterium smegmatis, Pseudomonas aeruginosa, and Enterococcus faecalis) and sterile water control specimens have been obtained along with spectra from sterile deionized water control specimens.

This presentation will detail our efforts to identify and optimize chemometric algorithms for the autonomous classification of unknown spectra. Algorithms such as principal component analysis (PCA), discriminant function analysis (DFA), partial least squares discriminant analysis (PLSDA), and artificial neural networks (ANN) have been investigated. Rates of sensitivity and specificity have been determined and will be presented for the various techniques. Efforts to use chemometric algorithms to discriminate low-titer suspensions from blank water specimens and thus calculate limits of detection and limits of identification will also be discussed.

Quantification of Sensitivity and Specificity in a Laser-Induced Breakdown Spectroscopy Diagnostic Assay for Pathogenic Bacteria Detection and Classification

**Effect of Lung Surfactant Protein B Fragment, SP-B1-9 on Model Lipid Bilayer.**
Abinu, MHK, ISV, MRM

Lung surfactant is a mixture of protein and lipid that reduces surface tension at the air-water interface in the lungs and thus reduces the work needed to breathe. Two hydrophobic proteins, SP-B and SP-C, are thought to facilitate the re-spreading of fresh and recycled surfactant material from bilayer and multilayer reservoirs. In an earlier deuterium NMR study of bilayer model membranes containing either the SP-B fragment SP-B(1-25, 63-78) or the fragment SP-B(8-25, 63-78), it was found that lipid acyl chain orientational order was perturbed more strongly by SP-B(1-25, 63-78). Both fragments contain the first and last SP-B helices but differ in whether or not the insertion motif, SP-B1-7, is present, suggesting that the insertion motif might play a role in the capacity of SP-B to promote the bilayer reorganization implicit in lung surfactant function. To gain more insight into the interaction of the insertion motif with surfactant lipids, we have studied the effect of SP-B1-9 on lipid acyl chain order in DPPC-d62 /POPG(7:3) bilayers using deuterium NMR and GROMACS molecular dynamics simulations.
Using deuterium NMR at a peptide: lipid ratio of 0.065, we find that the peptide tends to disorder acyl chains in the liquid crystalline bilayer phase suggesting that it promotes an increase in average lipid headgroup separation. MD simulation of a bilayer model containing SP-B1-9 at a peptide: lipid ratio of 0.031 also shows a decrease in chain orientational order. The MD simulations also provide information about the average peptide orientation and conformation. These findings may provide a better understanding of the extent to which the insertion motif may contribute to the capacity of SP-B to promote reorganization of bilayer surfactant material.

Supported by NSERC Discovery Grants to MRM and ISV.

Effect of Lung Surfactant Protein B Fragment, SP-B1-9 on Model Lipid Bilayer.

The Transverse Feedback system at the Canadian Light Source can identify, categorize, and mitigate against periodic instabilities that arise in the storage ring beam. By quickly opening and closing the feedback loop, previously mitigated instabilities will be allowed to grow briefly before being damped by the system. The resulting growth in the beam oscillation amplitude curve can be analyzed to determine growth/damp rates and modes of the coupled bunch oscillations. Grow/damp curves will be collected and analyzed for various storage ring beam properties, including beam profile density, beam energy, machine chromaticity, injection instability, insertion device gap width, or bunch fill patterns. These results will be used to characterize the known instability growth rates, and search for unknown instability modes that may cause stability problems in the future. The instability analysis in the CLS will also impact the design of future insertion devices that might be added for new beamlines and the design of the CLS2 ring which is being planned.

Analyzing Growth/Damp curves in the Canadian Light Source storage ring

The Hyper-Kamiokande (Hyper-K) experiment is the next generation of the Super-Kamiokande (Super-K) and T2K experiments investigating a breadth of physics topics including neutrino oscillation. The Hyper-K far-distance detector will contain ~40,000 20” photomultiplier tubes (PMTs), while the Intermediate-distance Water Cherenkov detector (IWCD) will contain ~500 multi-PMTs (each containing 19 3” PMTs). To minimize systematic errors in their measurements, a precise understanding of the PMTs’ intrinsic parameters, such as their detection efficiency and timing as a function of the incident photon position and angle, as well as their response to variations in magnetic field, is required.
These parameters can be measured at TRIUMF’s photosensor test facility (PTF). This facility characterizes PMTs by emitting a laser beam from robotic arms that enable fine control of the beam’s 3D position and orientation. The light wavelength and polarization can also be varied to mimic Cherenkov light. Additionally, the facility uses 6 Helmholtz coils to create and control the magnetic field.
Currently, the PTF is being recommissioned in a new location, farther from the magnetic interference of the on-site cyclotron. This poster will outline the software, hardware, and mechanical upgrades being implemented to improve the facilities robustness and the stability and accuracy of the measurements. These upgrades include mechanical modifications to simplify the process of inserting and removing the PMTs as well as the implementation of motor encoders, environmental sensors, and software to prevent collisions of the robotic arms during reflectivity measurements. Moreover, this poster will cover the modelling and measurement of the environmental magnetic field in the facility to reduce the time required to complete the magnetic field compensation process.

Hyper-Kamiokande Photosensor Test Facility Recommissioning and System Upgrades.

The Canadian Light Source (CLS) is a 3rd generation synchrotron in Saskatoon that is used to produce extremely bright synchrotron light that can be used for research. The light at the CLS is produced by an electron storage ring which has an emmitance of 20 nm. A 4th generation synchrotron (CLS2) is planned which will reduce the emmitance to less than 1 nm and thus reduce the transverse beam size significantly, making it very challenging to measure. A doubleslit interferometer can be used to measure small transverse beamsizes. An x-ray doubleslit interferometer will be designed and manufactured for the current CLS with the goal of using this setup at CLS2. Various constraints require the doubleslit to have dimensions on the micrometer scale, making the manufacturing very difficult.

X-ray Doubleslit Interferometer Progress at CLS

Simple Measurement for Field Reconstruction

The temporal resolution of pump-probe experiments is determined by the duration of the excitation and measurement pulses. A major constraint on femtosecond ($1$ fs = $10^{-15}$ s) and attosecond ($1$ as = $10^{-18}$ s) science is how well we can control and compress these pulses. However, such ultrashort pulses require a broad spectrum with careful phase control across its bandwidth to minimize the duration. The temporal characterization of these pulses is crucial in establishing ultrafast experiments. For this reason, several pulse characterizing techniques have been developed, each with their own strengths and weaknesses [1].

In this paper, we discuss a new optical measurement technique that can directly measure the electric field that constitutes the laser pulse. We find that compared to other techniques for electric field measurements, our method is relatively inexpensive and robust in characterizing pulses up to 100 fs in duration. This method requires only a commercially available CCD camera as opposed to spectrometers or other expensive instruments and provides the ability to reconstruct the field without ambiguities [2]. In this way, we can directly measure the temporal evolution of the field amplitude and phase [3]. We find that the measurement is in good agreement with established characterization techniques.

References

[1] J. C. Diels and W. Rudolph. Ultrashort Laser Pulse Phenomena, chapter Diagnostic Techniques,pages 452–466. Elsevier, 2006.

[2] T. J. Hammond, A. Korobenko, Y. Naumov, M. Villeneuve, P. B. Corkum and D. H. Ko. Near-field imaging for single-shot wave form measurements.Journal of Physics, 51, February 2018

[3] E. Goulielmakis, M. Uiberacker, R. Kienberger, A. Baltuska, V. Yakovlev, A. Scrinzi, T. West-erwalbesloh, U. Kleineberg, U. Heinzmann, M. Drescher and F. Krausz. Direct measurement of light waves.Science, 305(5688):1267–1269, August 2004.

Simple Measurement for Field Reconstruction

Trapped ions can offer a functional platform for quantum simulation of many-body Hamiltonians modeled by spin-systems. Programmable, arbitrary and precise control over each ion is required in order to tune ion-ion interactions, which translate to diverse parameters of the system under study. Current technologies suffer from scalability issues to large ion chains, and from ``cross-talk'' due to micron-level inter-ion separation. Here, we report our development of a holographic optical ion-addressing setup for Yb$^+$ ions ($\lambda = 369.5$ nm) using a Digital Micromirror Device (DMD). This technique uses a reprogrammable hologram to modulate the wavefront of the addressing beam and thus engineer the amplitude and phase profile of light across the ion ensemble to better than $\lambda/20$. We implement a novel Iterative Fourier Transform Algorithm (IFTA) to compute the desired hologram. This algorithm efficiently compensates for optical aberrations and produces $<10^{-4}$ intensity cross-talk error in arbitrary pair-wise addressing profiles, suitable for over fifty ions. This scheme relies on standard commercial hardware, can be readily extended to over a hundred ions, and adapted to other ion-species and quantum platforms. Such high-precision optical control will enable the simulation of arbitrary and dynamic lattice geometries of spins to be realized in a 1D chain of ions. This technique will also allow us to investigate problems in quantum quench, quantum phase transitions, and physics of higher dimensional systems such as the creation of topological states.

We acknowledge financial support from University of Waterloo, US ARO, NSERC Discovery and NFRF grants, TQT (CFREF), and the Ontario Government.

Holographic optical manipulation of trapped ions for quantum simulation

Development of portable X-ray fluorescence devices has made it easier to quickly assess trace elements such as zinc in human tissue. Zinc deficiency can have serious implications on growth and development of the human body. From recent studies zinc content in nail clippings has been suggested to be an effective biomarker for zinc status. In this study, a simulation approach was used to investigate the use of a portable X-ray fluorescence system for detecting the variation of zinc signal with respect to nail thickness and was compared with the experimental results. The portable X-ray device was modelled using the available information from the manufacturer using the TOPAS Monte Carlo code (Geant4 simulation software).The simulations were carried out for varying nail phantom thickness (0.2 mm – 1.2 mm) with concentration of 1000 ppm zinc. Each simulation was run for 10^9 histories and the statistical uncertainty was less than 3.5%. The obtained energy spectra from different measurements were analyzed and three different normalization techniques (Coherent, Compton and Entire) spectrum were investigated to account for the variation of sample interrogated by the X-ray beam. Close agreement between simulation and experimental trends were observed indicating successful benchmarking of the simulation. Compton and Coherent normalization followed a slightly negative trend. One other important observation was coherent normalization can be a robust normalization procedure to improve the accuracy of elemental quantification in order to reduce the variability in nail thickness by ~8%. Overall the simulation approach can provide additional insights into elemental analysis in keratin based nail phantoms.
