Magneto resistive random-access memory (MRAM) holds the potential to be a universal memory with its non-volatility, high speed, robust endurance, and system power savings capability. In the semiconductor memory and storage space, MRAM is poised to deliver the performance of working memory with the persistence of storage. The pioneer generation of MRAM product dubbed Toggle MRAM was first launched in 2006 and was based on magnetic field switching. Driven by continuous demand for lower power and higher density, spin transfer torque MRAM (STT-MRAM) was introduced into the market. In its commercialization, standalone STT-MRAM product saw rapid evolution toward higher density in which the memory density quadrupled every 2 years between 2015-2019 [1]. The successful scaling of STT-MRAM product is attributed to a concerted effort in materials engineering and the use of advanced process technologies. Most recently in 2019-2020, we saw two momentous events in MRAM development: Everspin launched a milestone 1Gb product [2], and 3 major foundries and 2 other companies announced their STT-MRAM product offerings [1].&lt;br/&gt;&lt;br/&gt;In this talk, we will review the fundamental aspects of STT-MRAM with a focus on read and write distributions of MRAM arrays. In order to achieve reliable high density STT-MRAM products it is critical to understand the contributions to these distributions and minimize the variation across the array. For instance, minimizing array write error rate (WER) relies much upon reducing the population of extrinsic magnetic tunnel junction (MTJ) bits in an array. A method was developed to quantify the population of extrinsic bits by calculating the switching failure rate upon doing N repeat of read-write sequence, which we call soft fail count. Figure 1(a) shows example of soft fail improvement by combining MTJ film engineering and process improvement. The soft fail count improvement is seen from both the reduction of outlier bits and tightening of main bits population to reach below the desired requirement. Figure 1(b) shows the median soft fail count plotted against wafer radius from center to edge. Such plot further elucidated the distinct contribution from MTJ film and process changes implemented. Detailed analysis shows that the MTJ film improvement reduces the extrinsic population and improved the switching reliability on the die level, while the process improvement extends the die uniformity across the wafer. These approaches were found to be additive when combined.&lt;br/&gt;&lt;br/&gt;A low operating voltage coupled with reliable switching (measured as distributions) is critical to integrating MTJ bits on silicon. Figure 2 shows the plots of normalized array operating voltage (V&lt;sub&gt;op&lt;/sub&gt;) and its sigma corresponding to the MTJ film and process improvement shown in Figure 1. Initial MTJ film change from A to B improved the V&lt;sub&gt;op&lt;/sub&gt; by 14% and significantly reduced the sigma by a factor 2.6x. Switching from process A to B using the improved film B improved the V&lt;sub&gt;op&lt;/sub&gt; by a further 3.3% with a comparable sigma level to process A. Finally, combining MTJ film C with Process B produced slight improvement in V&lt;sub&gt;op&lt;/sub&gt; and further reduction in sigma by 20%. This observation corroborated the reduction in bit error soft fail count shown in Figure 1.&lt;br/&gt;&lt;br/&gt;The improvement in bit-to-bit distribution is critical to enable reliable high density STT-MRAM products. In the talk, we will discuss the impact of these distributions on other key aspects such as data retention, switching pulse widths and endurance.

**References:**

References::&lt;br/&gt;[1] S. Ikegawa, F. B. Mancoff, J. Janesky, and S. Aggarwal, “Magnetoresistive Random Access Memory: Present and Future”, IEEE. Trans. Elec. Dev. 67(4), 1407 (2020); doi: 10.1109/TED.2020.2965403.&lt;br/&gt;[2] S. Aggarwal, H. Almasi, M. DeHerrera, B. Hughes, S. Ikegawa, J. Janesky, H. K. Lee, H. Lu, F. B. Mancoff, K. Nagel, G. Shimon, J. J. Sun, T. Andre, and S. M. Alam, &quot;Demonstration of a reliable 1 Gb standalone spin-transfer torque MRAM for industrial applications,&quot; in IEDM Tech. Dig., 2019, No. 2.1.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/36c8c73ccf560c4e602b00ef4a3f958c.jpg)
Figure 1. (a) Soft fail count improvement with combinations of MTJ film and process changes, (b) median soft fail count plotted against wafer radius from center to edge showing improvement in bits distribution within die and across wafer uniformity.

![](https://assets.underline.io/uploads/markdown_image/1/image/a88c3d224319675d69acb324487122c0.jpg)
Figure 2. Improvement in operating voltage (V&lt;sub&gt;op&lt;/sub&gt;) and its sigma with combinations of MTJ film and process changes

INTERMAG 2021

 Reliable High Density STT-MRAM Products INVITED

#### Welcome to the 60th IEEE International Reliability Physics Symposium (IRPS)!

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception) [![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing) [![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)


**General Chair Welcome Message**

Welcome to IRPS 2022! When the IRPS Management Committee began making plans for Dallas, we recognized the strong desire by the reliability physics community to return to a face-to-face symposium that we last had in Monterey in 2019. But as time progressed, we recognized that travel restrictions were not being lifted as rapidly as we anticipated. Rather than leave out those of you who could not attend in person, we adopted a hybrid format allowing for both remote attendance and remote presentations. This is a first for IRPS and I am confident it will be a success for all.

With this new hybrid format, the symposium will return to the original five-day format with Tutorials and Year in Review on the first two days. The Technical Program, Keynote Talks, Workshops and Poster session will be held on the following three days. All of these (except Workshops and Posters) will be available via real-time streaming in the US Central Time zone with virtual attendees having Q&A access to the presenters. For those virtual attendees who cannot watch the live presentations, the material will be available on demand to all attendees for a month after the symposium with the ability to communicate with the authors.

In 2020, we were planning on co-hosting the International ESD Workshop (IEW) ESD workshop when the COVID-19 pandemic hit. For 2022, IEW will be seamlessly embedded into the IRPS Program and will sponsor three tutorials, an invited talk, two technical sessions and two evening workshops focused on ESD and latch-up. And we continue our
collaboration with our sister conference, European Symposium on Reliability of Electron Devices Failure Physics and Analysis (ESREF) by hosting their Best Paper and the International Integrated Reliability Workshop (IIRW) by hosting their Best Student Paper.

Our primary objective is to maintain the symposium’s leadership role in the reliability physics of microelectronic devices by attracting leading researchers to present their work and providing attendees the best place to access this information. With all the buzz in the media about whether Moore’s Law has hit its limit, IRPS has been promoting expertise developed in silicon-based reliability over the past sixty years and expanding into new material areas. This year, eight of the technical sessions are devoted to reliability in topics outside of traditional silicon, including wide bandgap GaN/SiC, emerging memory and neuromorphic computing. I hope our ability to draw these communities together will accelerate the cross-fertilization of ideas.

The Technical Program consists of four keynote speakers, twenty-three invited speakers and eighty-seven oral presentations organized in thirty technical sessions on eighteen reliability topics. Over two evenings, there will be ten Workshops and sixty-six Poster presentations that are designed to allow in person attendees and experts to interact
with one another. With eighteen tutorials covering topics ranging from fundamental transistor and memory reliability all the way up to automotive and complex system-level reliability, this year’s symposium provides an excellent learning opportunity for engineers and scientists new to reliability as well as experienced individuals wanting to explore new
areas. The Year in Review, which serves as a summary of research in the past year, will cover 3D packaging, emerging memory and aging aware circuit designs.

Finally, I would like to express my extreme gratitude to our patrons and exhibitors, whose support makes IRPS possible.
And to all of you, our in person and virtual attendees, for supporting this symposium for sixty years!

**Charles W. Slayman, General Chair**
**of 2022 IRPS Management Committee**

**About IRPS**

The IEEE International Reliability Physics Symposium (IRPS) is the premiere conference for engineers and scientists to present new and original work in the area of microelectronics reliability. Drawing participants from the United States, Europe, Asia, and all parts of the world, IRPS seeks to understand the reliability of semiconductor devices, integrated circuits, and microelectronic assemblies through an improved understanding of both the physics of failure as well as the application environment. IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability, and to meet and network with reliability colleagues from around the world.

Please log in to explore this event. You need to log in with the email address you registered with. Access credentials have been sent to your email.

Please log in to explore this event.

Registration for this conference has now closed. We appreciate your interest and hope to welcome you at a future event. If you’d like to hear about similar upcoming events, please check our website or join our mailing list.

Registration for this conference has now closed.

IRPS 2022 Main Conference

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

Magneto resistive random-access memory (MRAM) holds the potential to be a universal memory with its non-volatility, high speed, robust endurance, and system power savings capability. In the semiconductor memory and storage space, MRAM is poised to deliver the performance of working memory with the persistence of storage. The pioneer generation of MRAM product dubbed Toggle MRAM was first launched in 2006 and was based on magnetic field switching. Driven by continuous demand for lower power and higher density, spin transfer torque MRAM (STT-MRAM) was introduced into the market. In its commercialization, standalone STT-MRAM product saw rapid evolution toward higher density in which the memory density quadrupled every 2 years between 2015-2019 [1]. The successful scaling of STT-MRAM product is attributed to a concerted effort in materials engineering and the use of advanced process technologies. Most recently in 2019-2020, we saw two momentous events in MRAM development: Everspin launched a milestone 1Gb product [2], and 3 major foundries and 2 other companies announced their STT-MRAM product offerings [1]. In this talk, we will review the fundamental aspects of STT-MRAM with a focus on read and write distributions of MRAM arrays. In order to achieve reliable high density STT-MRAM products it is critical to understand the contributions to these distributions and minimize the variation across the array. For instance, minimizing array write error rate (WER) relies much upon reducing the population of extrinsic magnetic tunnel junction (MTJ) bits in an array. A method was developed to quantify the population of extrinsic bits by calculating the switching failure rate upon doing N repeat of read-write sequence, which we call soft fail count. Figure 1(a) shows example of soft fail improvement by combining MTJ film engineering and process improvement. The soft fail count improvement is seen from both the reduction of outlier bits and tightening of main bits population to reach below the desired requirement. Figure 1(b) shows the median soft fail count plotted against wafer radius from center to edge. Such plot further elucidated the distinct contribution from MTJ film and process changes implemented. Detailed analysis shows that the MTJ film improvement reduces the extrinsic population and improved the switching reliability on the die level, while the process improvement extends the die uniformity across the wafer. These approaches were found to be additive when combined. A low operating voltage coupled with reliable switching (measured as distributions) is critical to integrating MTJ bits on silicon. Figure 2 shows the plots of normalized array operating voltage (Vop) and its sigma corresponding to the MTJ film and process improvement shown in Figure 1. Initial MTJ film change from A to B improved the Vop by 14% and significantly reduced the sigma by a factor 2.6x. Switching from process A to B using the improved film B improved the Vop by a further 3.3% with a comparable sigma level to process A. Finally, combining MTJ film C with Process B produced slight improvement in Vop and further reduction in sigma by 20%. This observation corroborated the reduction in bit error soft fail count shown in Figure 1. The improvement in bit-to-bit distribution is critical to enable reliable high density STT-MRAM products. In the talk, we will discuss the impact of these distributions on other key aspects such as data retention, switching pulse widths and endurance.

**References:**

References:: [1] S. Ikegawa, F. B. Mancoff, J. Janesky, and S. Aggarwal, “Magnetoresistive Random Access Memory: Present and Future”, IEEE. Trans. Elec. Dev. 67(4), 1407 (2020); doi: 10.1109/TED.2020.2965403. [2] S. Aggarwal, H. Almasi, M. DeHerrera, B. Hughes, S. Ikegawa, J. Janesky, H. K. Lee, H. Lu, F. B. Mancoff, K. Nagel, G. Shimon, J. J. Sun, T. Andre, and S. M. Alam, "Demonstration of a reliable 1 Gb standalone spin-transfer torque MRAM for industrial applications," in IEDM Tech. Dig., 2019, No. 2.1.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/36c8c73ccf560c4e602b00ef4a3f958c.jpg)
Figure 1. (a) Soft fail count improvement with combinations of MTJ film and process changes, (b) median soft fail count plotted against wafer radius from center to edge showing improvement in bits distribution within die and across wafer uniformity.

![](https://assets.underline.io/uploads/markdown_image/1/image/a88c3d224319675d69acb324487122c0.jpg)
Figure 2. Improvement in operating voltage (Vop) and its sigma with combinations of MTJ film and process changes

technical paper

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

Spintronics has been expanding its fields to cover not only electronics and magnetism but also photonics, caloritronics and mechanics in recent years. Among them, photoexcitation using circularly polarised light has been commonly used to generate a spin polarised electrical current mainly in a semiconductor [1]. However, the linkage between a spin current and a propagating surface plasmon polariton (SPP) has not been well investigated theoretically until recently [2]. SPPs are generated in a PHz regime in a non-magnetic metal, which can generate a magnetisation gradient and a resulting spin current. In this study, we have experimentally measured the SPP generated spin current using an inverse spin Hall effect and confirmed it agrees with the above theoretical prediction. A high vacuum sputtering system (PlasmaQuest, HiTUS) was used to deposit 20 nm thick Ag films on a thermally oxidised Si substrate. The films were also patterned into a Hall bar with the width of 1.2 mm and the length of 11 mm. By placing a prism (ThorLab, N-BK7) on the surface of the Hall bar, the Kretschmann arrangement was achieved for SPP introduction by a semiconductor laser (Thorlabs, LDM635 with the wavelength of 635 nm and the power of 0.4 mW). As shown in Fig. 1, a linear polariser and a half-wave plate (Thorlabs, SM05 mounted zero-order 633 nm) were used to generate both s- and p-polarisations. The spot size of the incident beam was then controlled using a pair of objective and a convex lens. The measured laser spot size was 1.73 mmf. The incident angle q of the beam to the prism was controlled by a mirror. The generated spin current was detected using an inverse spin Hall effect as schematically shown in Fig. 3. The source meter (Keithley, 2400) was used to detect the spin Hall voltage by connecting electrical contacts at the diagonal corners of the continuous film and the ends of the Hall bars. The incident angle q was adjusted to show the largest Hall voltage. The measurements were carried out with 600~1,000 repetitions with 0,1 ms interval, providing an average value with a standard deviation. A source current was set to be 0.0 and 0.1 mA for the Hall voltage and resistance measurements, respectively. The continuous films were measured to demonstrate the spin current generation by SPP as shown in Fig. 1a. Ag, Pt and W films were used for the inverse spin Hall measurement with and without a prism. In order to subtract any parasitic effects, e.g., spin caloritronic and photovoltaic effects induced by the laser introduction, a spin current generated by the electro-motive force Iemf was first estimated by subtracting the current generated by the electro-motive force with and without the prism. The spin current generated by SPP ISPP was then estimated by taking the difference between those generated by s- and p-polarisations since only the p-polarised light generates SPP. By solving the wave-number matching condition between the laser and SPP, the plasma frequency of Ag is estimated to be 2.18 PHz. ISPP is estimated to be (2.128 ± 0.281) and (6.650 ± 0.169) µA for the Ag continuous film and Hall bar, respectively, confirming the SPP-induced spin currents. Such a new linkage between spintronics and photonics and lead to a new coupler to convert optical data signals into spin currents for processing and storage and vice versa.

**References:**

[1] A. Hirohata, "Optically Induced and Detected Spin Current," in Spin Current S. Maekawa, S. O. Valenzuela, E. Saitoh and T. Kimura (Eds.) (Oxford University Press, Oxford, UK, 2012) p. 49-64. [2] D. Oue and M. Matsuo, New J. Phys. 22, 033040 (2020).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/3bcba07ccbb8f6e4d8383f907974c798.jpg)
Fig. 1 Schematic diagram of the spin current generation by SPP.

 Spin Current Induced by a Surface Plasmon Polariton

In the field of spintronics, pure spin currents are discussed for spin transport and spin-based information processing at low dissipation levels. Here, magnetically ordered insulators (MOIs) take an exceptional role, as magnon transport can be investigated in an isolated fashion. In addition, its properties can be measured by all-electrical means combining heavy metals (HM) and MOIs in heterostructures. In nanopatterned devices, this allows to excite, control, and detect incoherent magnons and investigate their transport properties. In our experiments, we deposit three electrically isolated platinum (Pt) strips on top of an 11 nm thick yttrium iron garnet (YIG) thin film to realize three-terminal devices [1], as shown in Fig. 1. Driving a charge current through the first Pt strip acting as the injector, a pure spin accumulation is created in the YIG via the spin Hall effect (SHE) and Joule heating. The excited magnons diffuse and can be detected at the detector Pt strip via the inverse SHE. A constant dc charge current Imod applied to the modulator strip placed between the two outer Pt strips allows to manipulate the magnon transport from injector to detector via a SHE induced spin accumulation and Joule heating effects [1]. The magnon diffusion between injector and detector can be modeled as magnon conductivity, which changes in a nonlinear fashion with increasing modulator current and exhibits a threshold behavior. Above threshold, the enhanced magnon conductivity is attributed to a zero effective damping state via SHE induced damping-like spin-orbit torque underneath the modulator [2]. Here, we quantitatively compare two measurement schemes: (i) a dc-technique and (ii) an ac-technique. We demonstrate that both schemes allow to investigate the magnon transport in three-terminal devices and can efficiently distinguish between electrically and thermally injected magnons [3]. In the first case, we apply a varying dc charge current to the injector and measure the detector voltage Vdc, utilizing the current reversal method to distinguish between the electrically and thermally injected magnons. For the ac-technique, an ac-current is applied to the injector, while the detector voltage Vac is measured via lock-in detection. We develop a model to compare the SHE contributions resulting in the measured values of Vdc and Vac. Both are expected to give identical values if we focus on the linear regime. We experimentally corroborate this model by performing an angle-dependent measurement, where we find a quantitative agreement of the dc and ac voltages, as depicted in Fig. 2(a) and 2(b), respectively. A more detailed comparison of the extracted detector signal amplitudes Adc and Aac of the SHE induced magnons shows that both schemes yield identical results in the low modulator charge current regime. However, we find clear differences above a certain threshold current, as shown in Fig. 2(c), where the ratio Aac/Adc exhibits a clear deviation from 1 for Imod &gt; 0.55 mA. This indicates contributions of higher orders to the detector voltage originating from the injector current. Our findings shed new light onto nonlinear effects on the magnon conductance, contributing to the understanding of the manipulation of magnon currents using a three-terminal device, which is crucial for implementing a logic based on incoherent magnons. We gratefully acknowledge financial support by the German Research Foundation via Germany’s Excellence Strategy (Grant No. EXC-2111-390814868) and project AL 2110/2-1.

**References:**

[1] L. J. Cornelissen et al., Physical Review Letters 120, 097702 (2018). [2] T. Wimmer et al., Physical Review Letters 123, 257201 (2019). [3] J. Gückelhorn et al., Applied Physics Letters 117, 182401 (2020).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/ac31d13b82c713ff614f865f5515b607.jpg)
Fig. 1 Sketch of the sample configuration and the experimental external magnetic field geometry.

![](https://assets.underline.io/uploads/markdown_image/1/image/1bf844b707812981e29cefb260a0e89b.jpg)
Fig. 2 Detector signals (b) Vdc and (c) Vac of the SHE induced magnons plotted as a function of the magnetic field orientation with constant magnitude µ0H = 50 mT for positive modulator currents Imod at 280 K. The detector signals induced by SHE magnon transport are in perfect agreement. (c) Ratio of the extracted amplitudes Adc and Aac of the SHE injected magnons for µ0H = 60 mT. For large modulator current values, the ratio clearly deviates from 1.

 Magnon transport in three-terminal YIG/Pt nanostructures studied by dc and ac detection techniques

Artificial intelligence (AI) is gaining acceptance in a variety of applications. In order to develop an energy-efficient architecture for AI, neuromorphic computing, which draws inspiration from the human brain, is being investigated. This architecture is a complex interconnection of numerous synthetic neurons and synapses, which are the processing and memory units, respectively. To realize neuromorphic architecture, one needs to fabricate artificial neurons as well as synapses. Several charge and spin-based material systems are being studied towards developing neuromorphic architecture. However, magnetic domain wall (DW) devices are one of the most energy-efficient contenders1. Besides, utilizing spin-orbit torque to drive DWs provides more degrees of freedom in achieving higher energy efficiency. Therefore, in the present study, we are studying spin-orbit torque for driving the DWs in the proposed novel material engineering to further reduce energy consumption. In SOT driven DW motion, the power can further be reduced either by increasing spin Hall angle or by reducing pinning field while keeping spin Hall angle at optimized values. Since W in β phase results in the highest spin Hall angle (θSH)2, we decided to study β-W-based spin Hall layer. However, β-W is obtained by depositing the W films at low power and high Ar gas pressure (HP). These depositions conditions result in granular W films, which in turn results in (a) more defects, (b) higher critical current, (c) larger power, and (d) lower TMR2,3. To resolve these, we have proposed the concept of the dual W layer, where a low-pressure (LP) W, which is expected to be smoother (lesser grains), is deposited between β-W and ferromagnetic layers. The studied stack involves dual W spin Hall layer (SHL) (6 nm)/ CoFeB (1 nm)/ MgO (~1 nm)/ Ru (2 nm). The studied stack is schematically illustrated in figure 1 (a). Firstly, we characterized the thin film samples and observed that the HP3LP3 (this means SOT layer consists of high pressure deposited W (3 nm)/ low pressure deposited W (3 nm)) dual-layer sample exhibits the best structural, magnetic, and electrical characteristics. Therefore, we fabricated DW devices from the HP3P3 sample. Moreover, we prepared DW devices from single LP6 and HP6 spin Hall layers for comparison purposes. The details of the measurements at the thin film level will be presented in detail during the conference. Subsequently, we studied the DW dynamics in our samples using Kerr microscopy. First, we saturated the DW devices with a large magnetic field. Then, we applied a reversed magnetic field to insert DW in the DW devices. Once the DW is inserted into the devices, we applied current pulses of various amplitudes and observed the DW motion. When current pulses were applied the DW moves in a direction opposite to the current (please refer to figure 1 (b-d). Moreover, as the amplitude of the current decreases the DW velocity decreases. Most importantly, the DW moves at the current density as small as 107 A/m2, as shown in figure 1 (d). The detailed measurements revealed that the DW can be moved to a minimum current density of 106 A/m2. Note, a small OOP magnetic field of -1 mT, which is approximately one-third of the coercivity of the devices, was applied during these measurements. On contrary, we observed that devices with a single spin Hall layer do not show the DW motion. Further harmonic Hall measurements and pinning field measurements showed that ultra-low pinning field (figure 2) in addition to the optimum value of spin Hall angle results in DW motion at such low currents in our dual-layer devices. We have also compared the energy consumption in our devices with respect to the current state-of-art and found a significant reduction in energy consumption in our devices4-6. In addition, we have proposed the design of DW-based neuron and synaptic devices. Moreover, we have proposed and studied the synaptic functions in meander wire, in which two neighboring segments meet at a small offset of “d”. We also demonstrated the working stochastic, which is for d= 15%, and non-stochastic, which is for d=50%, type synapses in our dual-layer meander devices. In conclusion, the observation of such energy-efficient DW motion is a significant contribution to the field of neuromorphic computing. The results in detail will be presented during the conference.

**References:**

P. Chenyun & A. Naeemi. IEEE J. Explor. Solid-State Comput. Devices Circuits 3, 101-110 (2017). C. Zhang, S. Fukami, K. Watanabe et al. Applied Physics Letters 109, 192405 (2016). K. Demasius, T. Phung, W. Zhang et al. Nature communications 7, 10644 (2016). S. DuttaGupta, S. Fukami, C. Zhang et al., Nature Physics, 12, 333-336 (2016). K. Fritz, L. Neumann, and M. Meinert, arXiv:1910.13837 (2019). K. Cai, Z. Zhu, J. Lee et al., Nature Electronics, 3, 37-42 (2020).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/448b927e09ca7d07c2f688e4d05410f2.jpg)
(a) Schematic illustration of the studied dual-layer stack. DW motion in our dual-layer devices at a current density of (b) 1011 A/m2, (c) 109 A/m2, and 107 A/m2.

![](https://assets.underline.io/uploads/markdown_image/1/image/8e024781e04b07a4dfb7cbde9e6afd60.jpg)
The DW velocity vs out-of-plane (OOP) magnetic field curves. A linear fitting of these curves provides information about the pinning field of the studied samples.

 Ultra-low Power Domain Wall Device for Spin-based Neuromorphic Computing

A promising means for long-distance transport of angular momentum is spin superfluidity [1-4]. In this work, the unsteady nonlinear dynamics of spin transport in an easy-plane, thin-film, one-dimensional ferromagnetic channel is studied analytically. We formulate an initial-boundary value problem (IVBP) for the Landau-Lifshitz equation subject to spin injection into a static, uniformly magnetized nanowire. The long-time steady-state configuration in such channels with zero applied field has been identified as either a dissipative exchange flow (DEF) or a contact soliton DEF (CS-DEF) [5], depending on the strength of the injection. Here, we study the injection-induced highly nonlinear, transient magnetization dynamics that occur prior to the damping-dominated steady-state is reached and include a constant applied field. In particular, we focus on the 1 ns timescale where damping is weak, and the spin dynamics are dominated by spin injection, applied field, exchange interaction, and demagnetizing fields. In our analysis, we recast the Landau-Lifshitz equation into its dispersive hydrodynamic (DH) form [6], in terms of the longitudinal spin density and a magnetic analog of the fluid velocity that is proportional to the spin current. The spin injection is characterized by a nonzero fluid velocity at one end of the channel, hence can be viewed as a spin hydrodynamic “piston”. The DH form captures two important effects in the ferromagnetic system: nonlinearity and dispersion, which are inherited from anisotropy and exchange, respectively. These effects lead to the generation of unsteady nonlinear waves when large gradients occur. A rapid rise in the fluid velocity due to spin injection leads to large gradients that result in a new kind of spin shock wave that is an example of a dispersive shock wave (DSW). DSWs are expanding, highly oscillatory, nonlinear excitations that realize a coherent transition between two states in a variety of dispersive media [7]. Spin wave envelope DSWs have been observed in a Yttrium Iron Garnet feedback ring [8]. We provide a full analytical classification of nonlinear wave solutions to this IVBP in terms of the applied field and injection strength, using the Whitham modulation theory [9]. The solution components are rarefaction waves (RWs), DSWs, and solitons (see Fig. 1). Both RWs and DSWs have been identified as solutions to a pure initial value problem (the Riemann problem) in a two-component Bose-Einstein condensate [10], whose governing equations are equivalent to the DH form of the Landau-Lifshitz equation we study here. In contrast, we show that the injection boundary plays a prominent role in the dynamics. Depending on the interplay between the spin injection intensity and the applied magnetic field magnitude, different types and combinations of RWs, DSWs, and solitons arise. The generation of a soliton is a distinct feature due to the boundary and is identified with an important concept [10]: the magnetic sonic condition. Solitons only occur at the spin injection end and only in the supersonic injection regime. Our analytical solutions are confirmed by micromagnetic simulations.

**References:**

[1] E. Sonin, Spin currents and spin superfluidity, Advances in Physics Vol. 59, p.181 (2010). [2] S. Takei and Y. Tserkovnyak, Superfluid spin transport through easy-plane ferromagnetic insulators, Physical Review Letters Vol. 112, p.227201 (2014). [3] H. Skarsvåg, C. Holmqvist, and A. Brataas, Spin superfluidity and long-range transport in thin-film ferromagnets, Physical Review Letters Vol. 115, p.237201 (2015). [4] M. Evers and U. Nowak, Transport properties of spin superfluids: Comparing easy-plane ferromagnets and antiferromagnets, Physical Review B Vol. 101, p.184415 (2020). [5] E. Iacocca and M. A. Hoefer, Hydrodynamic description of long-distance spin transport through noncollinear magnetization states: Role of dispersion, nonlinearity, and damping, Physical Review B Vol. 99, p.184402 (2019). [6] B. Halperin and P. Hohenberg, Hydrodynamic theory of spin waves, Physical Review Vol. 188, p.898 (1969). [7] G. El and M. Hoefer, Dispersive shock waves and modulation theory, Physica D: Nonlinear Phenomena Vol. 333, p.11 (2016). [8] P. A. P. Janantha et al., Observation of self-cavitating envelope dispersive shock waves in Yttrium Iron Garnet thin films, Physical Review Letters Vol. 119, p.024101 (2017). [9] G. B. Whitham, Linear and nonlinear waves, Vol. 42 (John Wiley & Sons, 2011). [10] S. K. Ivanov et al., Solution of the Riemann problem for polarization waves in a two-component Bose-Einstein condensate, Physical Review E Vol. 96, p.062202 (2017). [11] E. Iacocca, T. Silva, and M. A. Hoefer, Breaking of Galilean Invariance in the Hydrodynamic Formulation of Ferromagnetic Thin Films, Physical Review Letters Vol. 118, p.017203 (2017).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/bc60f7f3bb99d10a60fec8c293fde70d.jpg)
Fig. 1: Example simulations of (top to bottom) the spin density n, the magnetic fluid velocity u, and an in-plane magnetization component mx, at t = 1 ns in (left) the subsonic regime and (right) the supersonic regime.

 Spin-Injection-Generated Shock Waves and Solitons in a Ferromagnetic Nanowire

Rare earth iron garnet (REIG) thin films have attracted a great deal of attention for spintronic applications over the past few years. Properties of REIG|Pt heterostructures have also been extensively studied. However, effects of nonmagnetic ion substitution on iron sublattice of REIG thin films have not been investigated so far. We report growth, structural, magnetic and spintronic properties of epitaxial scandium substituted terbium iron garnet (TbScIG) thin films on gadolinium gallium garnet (GGG, (111) orientation) substrate. Reciprocal space mapping shows that films are lattice matched to substrate without strain relaxation up to thickness of 66 nm. All the deposited films with varying scandium content have been found to have perpendicular magnetic anisotropy (PMA) due to magnetoelastic anisotropy contribution arising from lattice strain. Their compositions have been determined using wavelength dispersive spectroscopy (WDS) to be Tb2.8Fe5.2O12, Tb2.8Sc0.3Fe4.9O12, Tb2.9Sc0.5Fe4.6O12 and Tb2.8Sc0.8Fe4.4O12. Thickness of these films have been determined to vary within 63-73 nm by fitting Laue fringes observed in symmetric high-resolution x-ray diffraction (HRXRD) scans around the GGG (444) peak. Compensation temperatures of TbScIG thin films have been found to decrease with increasing scandium content which is in agreement with larger Sc3+ ions occupying octahedral sublattice as reported in past for bulk yttrium iron garnet. Increasing scandium content has been found to be accompanied by increase in room temperature saturation magnetization from 37 emu/cm3 for Tb2.8Fe5.2O12 to 59 emu/cm3 for Tb2.8Sc0.8Fe4.4O12. Anomalous Hall effect (AHE) like spin-Hall magnetoresistance (SMR) measurements have been performed to determine the effect of scandium content on spin mixing conductance of TbScIG|Pt interface. Ferromagnetic resonance (FMR) measurements have been performed to determine the Gilbert damping parameter of these thin films.

**References:**

1. Rosenberg, E. R. et al. Phys. Rev. Mater. 2, 094405 (2018). 2. Chen, Y.-T. et al. Phys. Rev. B 87, 144411 (2013). 3. Geller, S. J. Appl. Phys. 37, 1408–1415 (1966). 4. Espinosa, G. P. J. Chem. Phys. 37, 2344–2347 (1962). 5. Geller, S. & Gilleo, M. A. J. Phys. Chem. Solids 3, 30–36 (1957).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/6622f0b7058f2890a716a1b0e7583354.jpg)
Fig. 1 High-resolution XRD scans of TbScIG/GGG thin films with varying Sc content (vertically offset for clarity with film and substrate peaks labeled F and S respectively)

![](https://assets.underline.io/uploads/markdown_image/1/image/a0dcfa0d077c1af474271af74f5d7897.jpg)
Fig. 2 Magnetic moment versus temperature for TbScIG/GGG thin films with varying Sc content. A typical error bar is attached.

 Magnetic and Spintronic Properties of Scandium Substituted Terbium Iron Garnet Thin Films

The transverse electric field generated by anomalous Nernst effect (ANE) in a magnetic material is perpendicular to both the temperature gradient (▽T) and its magnetization (M), different from the parallel relationship between the generated electric field and ▽T emerges from Seebeck effect (SE). This allows different design principles for thermoelectric power generation and heat flux sensing devices, which could be advantageous in creating a simple and flexible device with better integratability and scalability.[1-3] However, the practical application of ANE is hampered by the fact that the thermopower of ANE (SANE) is still orders of magnitude smaller compared to that of SE (SSE), and there has been increasing studies in order to find magnetic materials with large SANE in recent years. SANE can be separated into two components as SANE = ρxxαxy − ρAHEαxx, where ρxx is the longitudinal resistivity, ρAHE is the anomalous Hall resistivity, and αxx and αxy are the diagonal and off-diagonal components of the Peltier tensor, respectively. The first term on the right hand side (ρxxαxy) is considered the intrinsic term of ANE, as αxy directly converts ▽T into a transverse electrical current. The L21-ordered Co2MnGa Heusler alloys have shown large values of αxy originated from their topological band structures, which lead to record high values of SANE.[4-7] The second term on the right hand side (− ρyxαxx) can be rewritten as – SSE × ρAHE / ρxx, indicating it originates from the anomalous Hall effect (AHE) of the longitudinal carrier flow induced by SE. Here, inspired by the second term, we propose a different approach for transverse thermoelectric generation. We considered a hybrid system comprising a thermoelectric material and a magnetic material. The electric field generated by SE of the thermoelectric material was converted to transverse thermoelectric generation by AHE of the magnetic material, which showed a similar symmetry to ANE, but surprisingly, more than one order of magnitude enhancement in thermopower. This is referred to as the Seebeck-driven transverse thermoelectric generation (STTG).[8] To model STTG and derive an expression for its transverse thermopower, we consider a system that consists of a thermoelectric material and a magnetic material electrically connected at both ends along the ▽T direction to form a closed circuit, as shown in Fig. 1. Both materials have a rectangular shape, with LTEx, LTEy, and LTEz (LMx, LMy, and LMz) respectively being the length along x, y, and z directions for the thermoelectric (magnetic) material. The magnetic material has the Seebeck coefficient SM, anomalous Nernst coefficient SANE, resistivity ρM, and anomalous Hall resistivity ρAHE. The thermoelectric material has the Seebeck coefficient STE, and resistivity ρTE. By solving the linear-response transport equations for the hybrid system, we derived the total transverse thermopower as Stoty = (EMy / –▽T) = SANE – ρAHE (STE – SM) / ((ρTE / r) + ρM), where EMy is the transverse electric field along the y direction in the magnetic material and r = (LMx / LTEx) × (LTEyLTEz / LMyLMz) is the size ratio between the thermoelectric and magnetic materials. In addition to ANE from the magnetic material, Stoty includes the contribution from the artificial hybridization of SE of the thermoelectric material through STE and AHE of the magnetic material through ρAHE (the second term on the right hand side), which is STTG. For the proof-of-concept demonstration of STTG, we deposited a 50-nm-thick L21-ordered Co2MnGa thin film on a single-crystalline MgO (100) substrate and used it as the magnetic material. The MgO substrate was then cut into a rectangular shape and bonded onto a rectangular-shaped 0.5-mm-thick Si substrate, which was used as the thermoelectric material. The Co2MnGa film and Si substrate were electrically connected to each other through Ohmic contacts and bonding wires near the ends to form the closed circuit. EMy in the Co2MnGa layer was measured while the magnetic field (H) was swept in the direction perpendicular to the sample plane. The same measurement was also carried out without the Co2MnGa-Si connection. Figure 2 shows the H dependence of EMy divided by ▽T for the samples using whether an n-type Si (STE = −1.3×103 µV K−1) or a p-type Si (STE = 1.3×103 µV K−1) as the thermoelectric material. Without the Co2MnGa-Si connection, only the ANE contribution from the Co2MnGa layer was measured, which showed SANE ~ 6.2 µV K−1, consistent with previous reports.[4-7] With the Co2MnGa-Si connection, however, the total transverse thermopower Stoty increased by one order of magnitude to 82.3 µV K−1 for using n-type Si; while Stoty changed sign to −41.0 µV K−1 for using p-type Si. The experimentally obtained Stoty is consistent with the predicted values made using the equation and the properties of the Co2MnGa and Si, which is 77.2 (−45.3) µV K−1 for Co2MnGa/n(p)-type-Si system. Our result indicates that STTG can make significant enhancement from ANE in the transverse thermopower by optimizing transport properties and dimensions of the materials, which would provide great flexibility for designing future thermoelectric power generation and heat flux sensing devices.

**References:**

[1] K. Uchida, H. Adachi, T. Kikkawa et al., Proc. IEEE, Vol. 104, p.1946 (2016). [2] Y. Sakuraba, Scr. Mater., Vol. 111, p.29 (2016). [3] W. Zhou, and Y. Sakuraba, Appl. Phys. Express, Vol. 13, p.043001 (2020). [4] A. Sakai, Y. P. Mizuta, A. A. Nugroho et al., Nat. Phys., Vol. 14, p.1119 (2018). [5] S. N. Guin, K. Manna, J. Noky et al., NPG Asia Mater., Vol. 11, p.16 (2019). [6] L. Xu, X. Li, L. Ding et al., Phys. Rev. B, Vol. 101, p.180404(R) (2020). [7] K. Sumida, Y. Sakuraba, K. Masuda et al., Commun. Mater., Vol. 1, p.89 (2020). [8] W. Zhou, K. Yamamoto, A. Miura et al., Nat. Mater. (2021), DOI: 10.1038/s41563-020-00884-2.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/af67d3057028ca8c7187a10cb62d178a.jpg)
Schematic illustration of the model system for Seebeck-driven transverse thermoelectric generation.

![](https://assets.underline.io/uploads/markdown_image/1/image/d8560fa996a7031109c92672c1f01103.jpg)
(a) H dependence of the transverse electric field EMy divided by ▽T in the Co2MnGa layer of the Co2MnGa/n-type-Si sample and (b) Co2MnGa/p-type-Si sample with (STTG + ANE) and without (ANE) the Co2MnGa-Si connection.

 Seebeck-driven Colossal Transverse Thermoelectric Generation

Spintronics combining with superconductor electronics is of exciting and challenging subject because of its intriguing and amazing properties. Spin-polarized current injected from the ferromagnetic metal can be carried by quasi-particles in a superconductor. The injected quasiparticles diffusively flow and gradually convert the Cooper pairs within a few micron length scale. Since a conventional Cooper pair consists of a pair of up- and down-spin electrons, the spin-polarized current is expected to take longer time to be transformed to the supercurrent. To investigate the relaxation processes of spin-polarized current in superconductor, we developed a Nb-based multi-terminal device with a ferromagnetic CoFeAl spin injector as schematically shown in Fig. 1. The injected quasiparticles relax with decaying electrochemical potentials. In the probe configuration shown in Fig. 1, the decreasing non-local quasiparticles electrochemical potentials can be detected as non-local resistances. Moreover, by changing the injector from Cu to CoFeAl, we can compare the relaxation lengths for non-polarized and polarized quasiparticles. Figure 2 shows non-local resistances measured with nonmagnetic injectors with changing the distance from 0 to 3000 nm. Non-local resistance depends mainly on a charge imbalance which are a nonequilibrium phenomenon that arises from the conversion of quasiparticle current in the normal metal to supercurrent in the superconductor [1]. From the electrodes-distance dependence of non-local resistances, we estimated the relaxation length of non-polarized quasiparticles is 950 ± 30nm, while that of polarized quasiparticles is 1240 ± 130nm. This difference can be explained by the spin diffusion length at the vicinity of superconducting transition temperature which is longer than that in a normal conducting state.

**References:**

[1] P. Cadden-Zimansky and V. Chandrasekhar, Phys. Rev. Lett. 97, 237003 (2006).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/6a7ff821738fccf3134555c8773ca6f1.jpg)
Fig.1 Multi-electrode mesoscopic device

![](https://assets.underline.io/uploads/markdown_image/1/image/1a92e23000507f88fdf5c54608e252c3.jpg)
Fig. 2 Temperature dependence of non-local resistances with various distances between an injector and detectors (top), and the electrodes-distance dependence of the maximum values of non-local resistances (bottom) for (A) Non spin polarized quasiparticles and (B) Spin polarized quasiparticles.

 Relaxation Process of Spin-polarized Quasiparticles in a Superconducting Nb Wire

We theoretically investigated the four-fold symmetric term of the anisotropic magnetoresistance (AMR) effect in cubic ferromagnetic metals (FMs), which has recently been observed experimentally for certain metals, by using fourth-order perturbation theory with respect to the spin-orbit interaction (SOI). The AMR effect is a magnetoresistance effect specific to magnetic metals in which the charge conductivity changes depending on the direction of magnetization in FMs [1], and attracted much attention in the field of spintronics to apply for evaluation of half-metallicity [2] or spin-orbit torque generation [3]. Usually, in experiments on bulk polycrystalline FMs, the longitudinal conductivity is proportional to the cos(2θ) where θ is the relative angle between the current direction and the magnetization direction, that is, the AMR effect has two-fold symmetry under the magnetization rotation. Theoretically, this two-fold AMR effect is caused by the SOIs and has been successfully explained by Campbell’s model, an s-d impurity scattering model with considering the second-order perturbation in terms of the SOIs [4]. In single-crystal FMs such as Fe4N, however, the AMR measurements exhibited not only the conventional two-fold component but also the unconventional four-fold component proportional to cos(4θ) [5]. While this four-fold AMR effect is expected to stem from the symmetry of the cubic crystal, the microscopic origin is not so straightforward because the magnetization direction dependence of the conduction band is too small to explain this effect. Recently, a possible mechanism of the four-fold AMR effect is theoretically proposed by Kokado [6], wherein the s-d scattering coupled with the SOIs and “tetragonal” symmetric crystal fields is responsible for this effect. This theory is an extension of Campbell’s model in polycrystalline FMs to the single crystal FM model by taking into account the energy level splitting due to the tetragonal crystal fields on the d-states (Fig. 1). Since it is argued that the splitting among d-states is significant for the presence of a four-fold component, this theory requires the extra assumption of existing the tetragonal (uniaxial or planar) distortion to apply to the cubic crystals including the Fe4N. However, the experiment is confronted with the fact that the four-fold component appears even though the sample is almost cubic crystal and has little distortion. The microscopic origin is still controversial; therefore, it is worthwhile to explore a possible mechanism of the four-fold AMR effect in the cubic symmetric single-crystal FMs without tetragonal distortion. In this work, we show the presence of the four-fold AMR effect in cubic single crystal FMs from a microscopic viewpoint [7]. Our main finding is that the higher-order perturbation terms of SOI can also be responsible for the four-fold AMR effect in cubic FMs, instead of the second-order SOI with tetragonal distortion as mentioned in Kokado’s theory. Inspired by the Kokado model, we use the s-d impurity scattering model expressed by an impurity Anderson Hamiltonian with cubic crystal fields and SOI. The conductivity is represented on the basis of the Kubo–Greenwood formula. This approach enables us to consider the non-perturbative role of SOIs on the AMR effects. Firstly, to overlook a physical aspect of this effect, we carried out perturbative analysis with respect to the SOIs. The results indicate that the fourth-order terms of SOI can give rise to the four-fold AMR effect. Furthermore, we extract the two important roles of the SOI: first, to couple the electron’s momentum and magnetization, and second, to induce the orbital splitting among d-states instead of the tetragonal crystal field. Secondly, we performed numerical calculations to evaluate the non-perturbative behavior of the AMR effects. As the results, we successfully obtained both the two-fold and four-fold components of the AMR effect without assuming the tetragonal distortion, which is consistent with the perturbative analysis (Fig. 2). Other parameter dependencies will be presented at the conference.

**References:**

[1] T. McGuire and R. Potter, IEEE Trans. Magn., Vol. 11, p.1018 (1975). [2] S. Kokado, M. Tsunoda, K. Harigaya, and A. Sakuma, J. Phys. Soc. Jpn., Vol. 81, p.024705 (2012). [3] T. Taniguchi, J. Grollier, and M. D. Stiles, Phys. Rev. Applied, Vol. 3, p.044001 (2015). [4] I. A. Campbell, A. Fert, and O. Jaoul, J. Phys. C, Vol. 3, p.S95 (1970). [5] M. Tsunoda, H. Takahashi, S. Kokado, Y. Komasaki, A. Sakuma, and M. Takahashi, Appl. Phys. Express, Vol. 3, p.113003 (2010). [6] S. Kokado and M. Tsunoda, J. Phys. Soc. Jpn., Vol. 84, p.094710 (2015). [7] Yuta Yahagi, Daisuke Miura, and Akimasa Sakuma, J. Phys. Soc. Jpn., Vol. 89, p.044714 (2020)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/8e02bcab2e43d5b25b65902dc8186411.jpg)
Fig.1: Schematics of the energy level of the d-states under (a) a cubic symmetric and (b) a tetragonal symmetric crystal-field, respectively.

![](https://assets.underline.io/uploads/markdown_image/1/image/04a12b54dea732a7b428e0597df7effd.jpg)
Fig.2: Two-fold (c2) and four-fold (c4) components of the AMR ratio.

 Theoretical Study on Four-fold Symmetric Anisotropic Magnetoresistance Effect in Cubic Single-crystal Ferromagnetic Model

In spintronics, Cu is often considered as a passive material which cannot generate spin current by itself due to negligible spin-orbit coupling (SOC). However, recent experiments reported observation of gigantic current-induced spin-orbit torque in surface oxidized Cu/ferromagnet structures [1-5], whose magnitude is comparable to material systems with large SOC such as Co/Pt. These experimental results cannot be explained neither by spin Hall effect nor by Rashba-Edelstein effect since these mechanisms assume strong SOC. On the other hand, electric generation of the orbital angular momentum does not require SOC at all, which can be achieved via orbital Hall effect [6] or orbital Rashba-Edelstein effect [7]. Furthermore, according to a recent theory, injection of orbital angular momentum to a ferromagnet can generate torque on the magnetization, which is called orbital torque (OT) [8]. Thus, it has been proposed that a microscopic mechanism responsible for the torque generation in surface oxidized Cu/ferromagnet is OT, originating in the orbital Rashba effect (ORE) at oxidized region of Cu film. The OT mechanism qualitatively explains anomalous features observed in experiments such as strong suppression of the torque by intermixing of atoms at the interface [3], sign change of the torque for depending on ferromagnets [4], and gigantic enhancement of the torque efficiency by insertion of an ultrathin Pt layer [5]. However, to our best knowledge, there is no direct evidence of the ORE nor theoretical investigation of the electronic structure of Cu film under influence of surface oxidization. In this contribution, we present our recent theoretical results showing that surface oxidization of a Cu film leads to strong enhancement of the ORE [9], which is assessed from first-principles calculations based on density functional theory. We find that microscopic origin of the ORE is the resonant hybridization between O p-orbitals and Cu d-orbitals. We investigate various stacking geometries (fcc hollow, hcp hollow, bridge, on-top structures) and find that the ORE emerges in a robust manner. The ORE leads to a pronounced orbital texture at the Fermi surface (Fig. 1), where the magnitude of the orbital polarization reaches as much as 0.5 \hbar per state. Because of the orbital texture, application of an external electric field leads to a generation of orbital Hall current, which by far exceeds the magnitude of the spin current of heavy elements. This implies that the OT mechanism can be significant in surface oxidized Cu/ferromagnet structures. Our theoretical results also encourage experimental verification of the orbital texture, i.e. by angle-resolved photoesmission spectroscopy or momentum microscopy.

**References:**

[1] An et al. Spin-torque generator engineered by natural oxidization of Cu, Nat. Commun. 7, 13069 (2016). [2] Otano et al. Nonreciprocal Spin Current Generation in Surface-Oxidized Copper Films, Phys. Rev. Lett. 122, 217701 (2019). [3] Kim et al. Non-trivial charge-to-spin conversion in ferromagnetic metal/Cu/Al2O3 by orbital transport, Phys. Rev. B, in press. [4] Tazaki et al. Current-induced torque originating from orbital current, arXiv:2004.09165. [5] Ding et al. Harnessing Orbital-to-Spin Conversion of Interfacial Orbital Currents for Efficient Spin-Orbit Torques, Phys. Rev. Lett. 125, 177201 (2020). [6] D. Go, D. Jo, C. Kim, and H.-W. Lee, Intrinsic Spin and Orbital Hall Effects from Orbital Texture, Phys. Rev. Lett. 121, 086602 (2018). [7] Go et al. Toward surface orbitronics: giant orbital magnetism from the orbital Rashba effect at the surface of sp-metals, Sci. Rep. 7, 46742 (2017). [8] D. Go and H.-W. Lee, Orbital torque: Torque generation by orbital current injection, Phys. Rev. Res. 2, 013177 (2020). [9] Go et al. Orbital Rashba effect in surface oxidized Cu film, arXiv:2011.08601.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/4a85b5b77611539a80e30b149ba500dc.jpg)
Orbital angular momentum texture of the surface oxidized Cu film at the Fermi surface. The colormap represents the magnitude and the arrow indicates direction of the angular momentum at each k-point.

 Strong enhancement of the orbital Rashba effect in Cu film by surface oxidization

STT-MRAM materials and technology have recently matured to the point of moving from “lab to fab” for 28nm-22nm node standalone and eNVM applications. Prior work has mostly placed MTJ devices above M2 or even higher in the BEOL stack, depending on the application and integration constraints [1-4]. However, optimizing MRAM for mobile or last-level cache applications requires significant improvements in write speed, write current, endurance, and density of both the MRAM cell in addition to the CMOS [5]. In this work, we present the first Embedded Spin-Transfer-Torque MRAM (eMRAM) technology in a 14 nm CMOS node. Using a 2 Mb eMRAM macro, we achieve an integration at tight MTJ pitch (0.0273 um2 cell size), which is aggressively placed between M1 and M2. We demonstrate read and write functionality, including write performance down to 4 ns, and show that the eMRAM process module can be added while obeying the existing CMOS logic BEOL design rules and reliability requirements. Several unit process innovations enabled this integration, including a novel sub-lithographic microstud (μ-stud) bottom electrode (BEL), fine profile control of the MTJ patterning and dielectric films, optimized BEL/MTJ metallization, and optimized post-MTJ low-k planarization across array and logic areas. The result preserves the minimum 3 added mask levels (2 critical for μ-stud and MTJ; 1 non-critical for MTJ alignment marks), without mask-adders for low-k planarization or top electrode (TEL). A shrink patterning process ensures that the μ-stud top CD is always smaller than the MTJ bottom CD, for MTJ sizes down to below 35 nm. This minimizes shunting by eliminating the BEL resputtering onto the MTJ sidewalls during patterning, and increases etch budget. The μ-stud BEL module re-uses current manufacturing processes. Figure 1 shows a TEM cross section of 41nm MTJ devices with a sub-lithographic μ-stud underneath. The alternating MTJ pitch presented a challenge for IBE overetch/cleanup without excessive dielectric gouge. Additional tests were completed showing good device scalability to 35nm, with magnetic property degradation at smaller sizes due to edge damage that could be improved with further etch optimization. Cache applications require writing at high speed with high cycling endurance, but data retention performance can be relaxed (e.g. using ECC and data scrubbing). Figure 2 shows the eMRAM write performance. The array was written to the 1 state, then to the 0 state, versus write pulse voltage and width. The curves show the write voltage for passing median bits vs. write pulse width, from 4 ns - 20 ns. Stack B incorporated materials optimizations to reduce write voltage and time for suitability towards the last level cache. We performed a series of retention bakes at 85°C on arrays of target and smaller sized devices, demonstrating projected fail rates well below 1 ppm for retention times of ≤1 min. at nominal 43 nm CD. Results also include endurance cycling tests on 128 kb arrays up to 5x106 cycles, and single MTJs up to 1010 cycles. No dielectric breakdown or resistance drift was observed in either case. Finally, an early BEOL reliability assessment of electromigration and time-dependent dielectric breakdown supports our eMRAM embeddability for high-performance logic applications.

**References:**

[1] S. Aggarwal, et al., IEEE IEDM, San Francisco, pp. 2.1.1-2.1.4, 2019. [2] K. Lee, et al., IEEE IEDM, San Francisco, pp. 2.1.1-2.1.4, 2019. [3] W. J. Gallagher, et al., Symposium on VLSI Technology, Kyoto, pp. T190-T191, 2019. [4] J. G. Alzate et al., IEEE IEDM, San Francisco, pp. 2.4.1-2.4.4, 2019. [5] S. Sakhare et al., IEEE IEDM, San Francisco, pp. 18.3.1-18.3.4.2018.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/4ca2fc66e4cfa0a482eef090a40fd8bc.jpg)
Figure 1: TEM cross section of 41nm MTJ devices inserted between the 14nm node M1 and M2 levels. The mstud enabled sufficient overetch & cleanup during MTJ patterning.

![](https://assets.underline.io/uploads/markdown_image/1/image/005730caa67f8294cda72db1f933d05e.jpg)
Figure 2: Passing median bit write voltage vs write pulse width for both W0 and W1 operation. Stack B improvements to the free layer enabled higher speed 4ns switching.

Downloads

Next from INTERMAG 2021

Spin Current Induced by a Surface Plasmon Polariton

Similar lecture

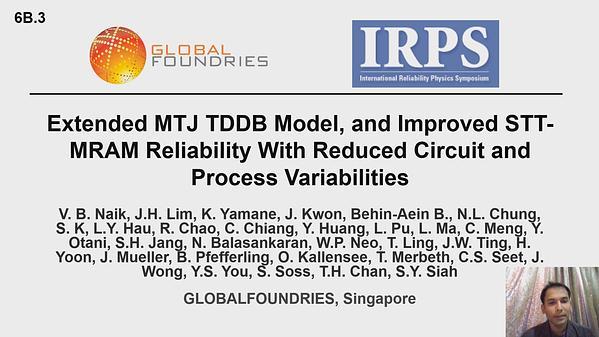

Extended MTJ TDDB Model, and Improved STT-MRAM Reliability with Reduced Circuit and Process Variabilities
